🟦 BASIC INFORMATION
Model NO.
NJ-314 electronic strike lock
Working Principle
Electronically Controlled Lock
Function
Fail-Safe, Fail-Secure
Shear Strength
1000lbs (500kg)
Face Place Material
High Aluminum
Surface Temp
Low Temperature
🟦 PRODUCT DESCRIPTION

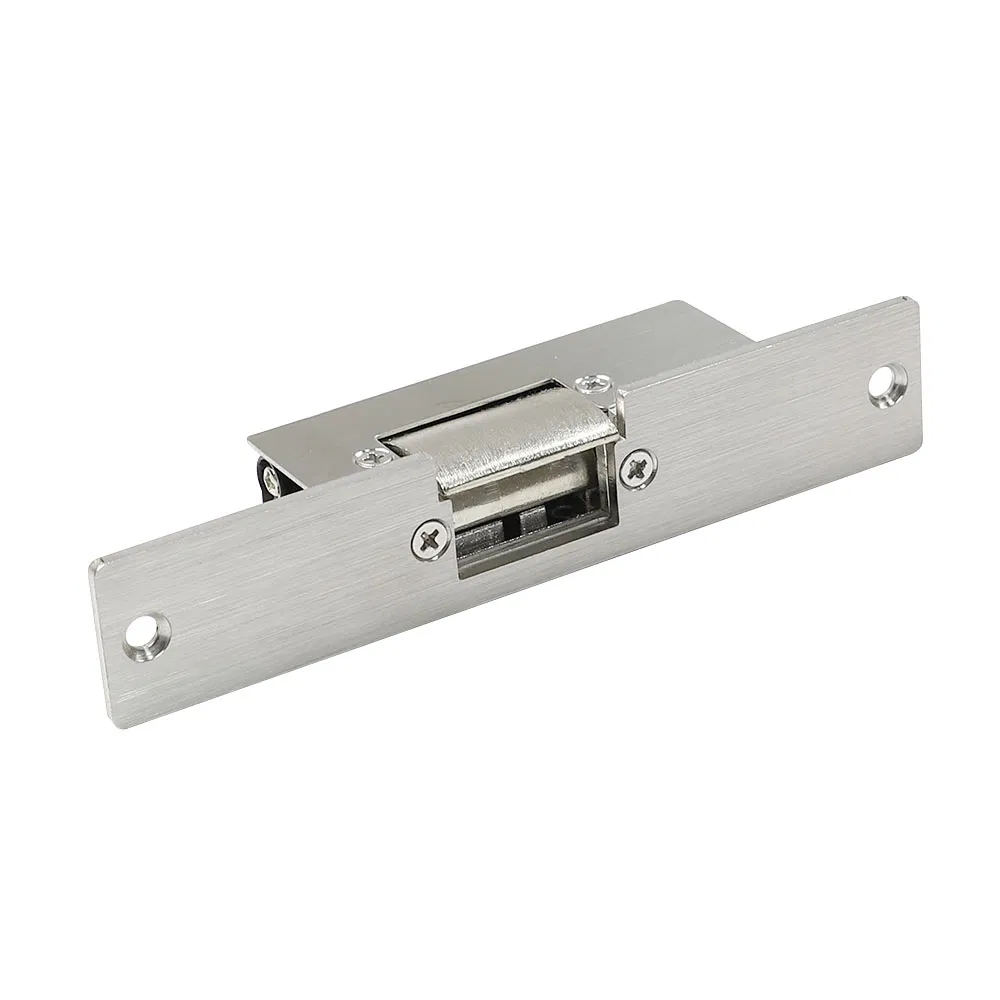

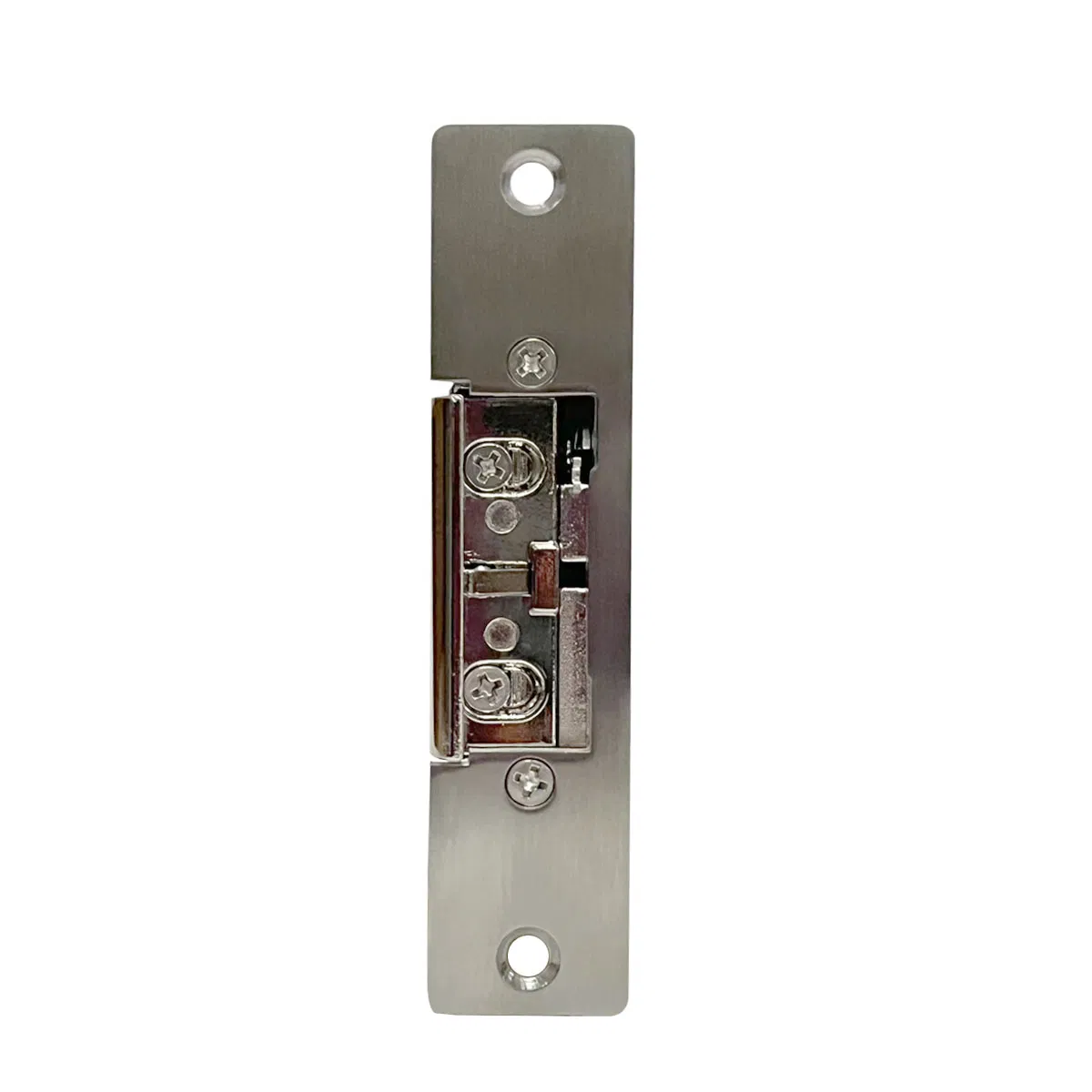

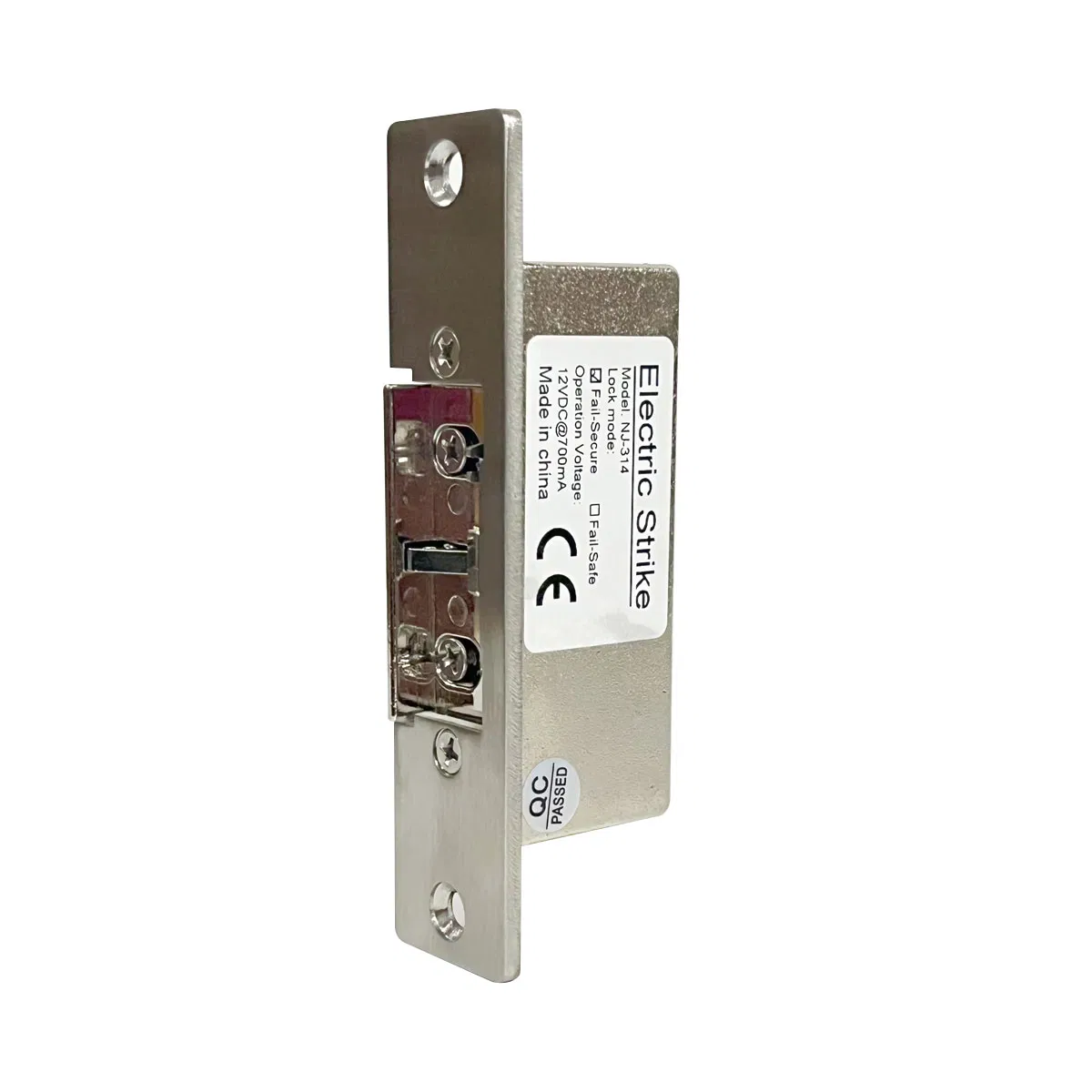

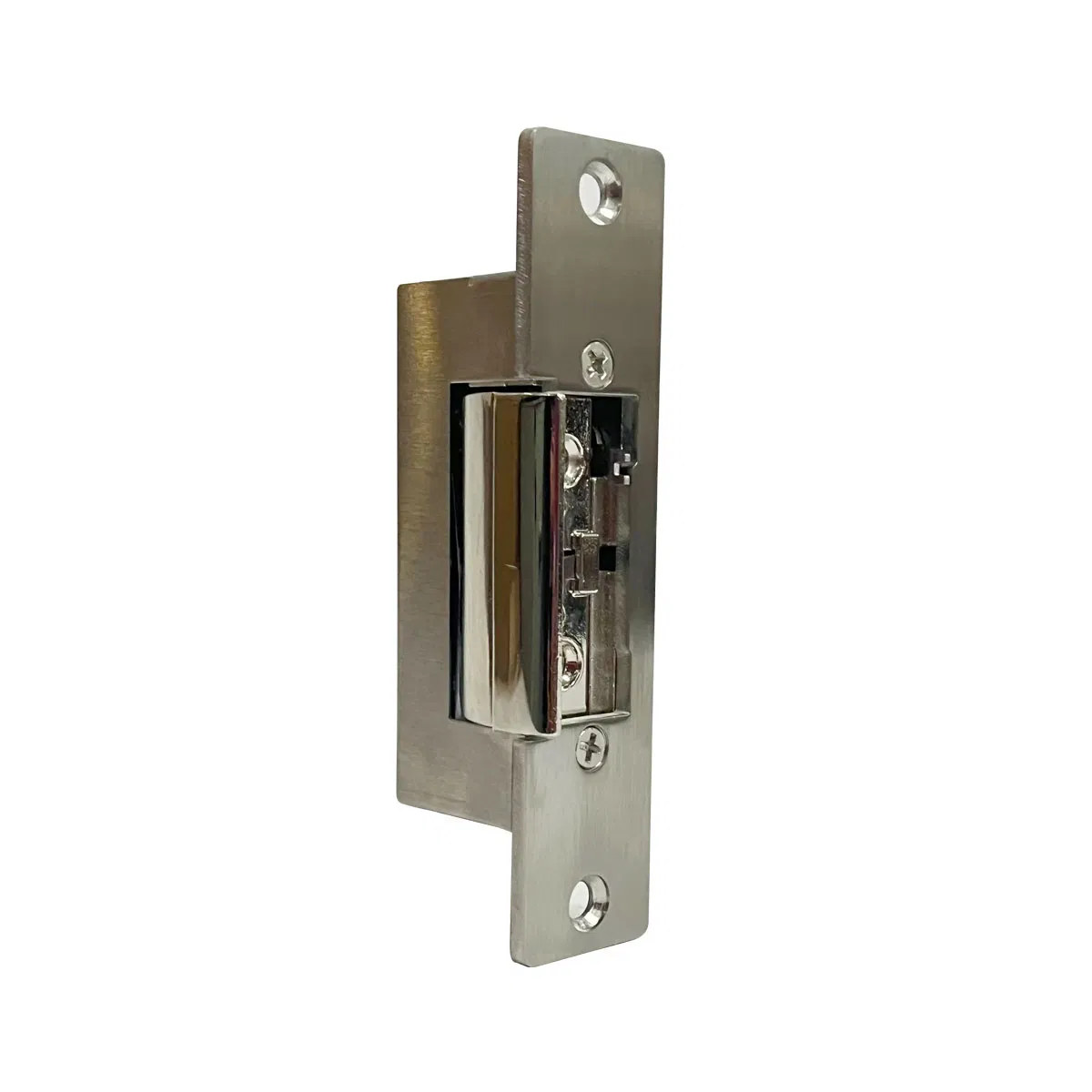

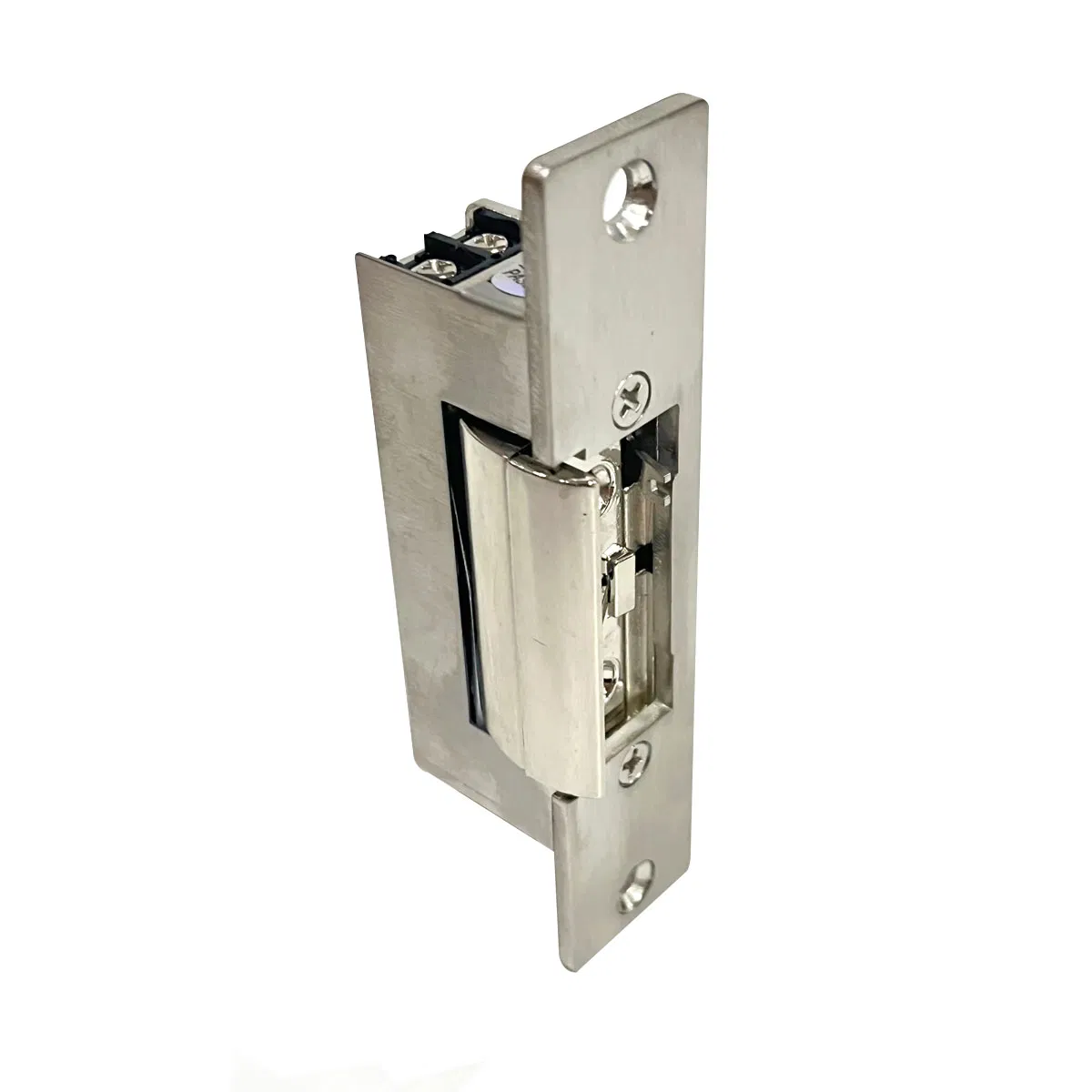

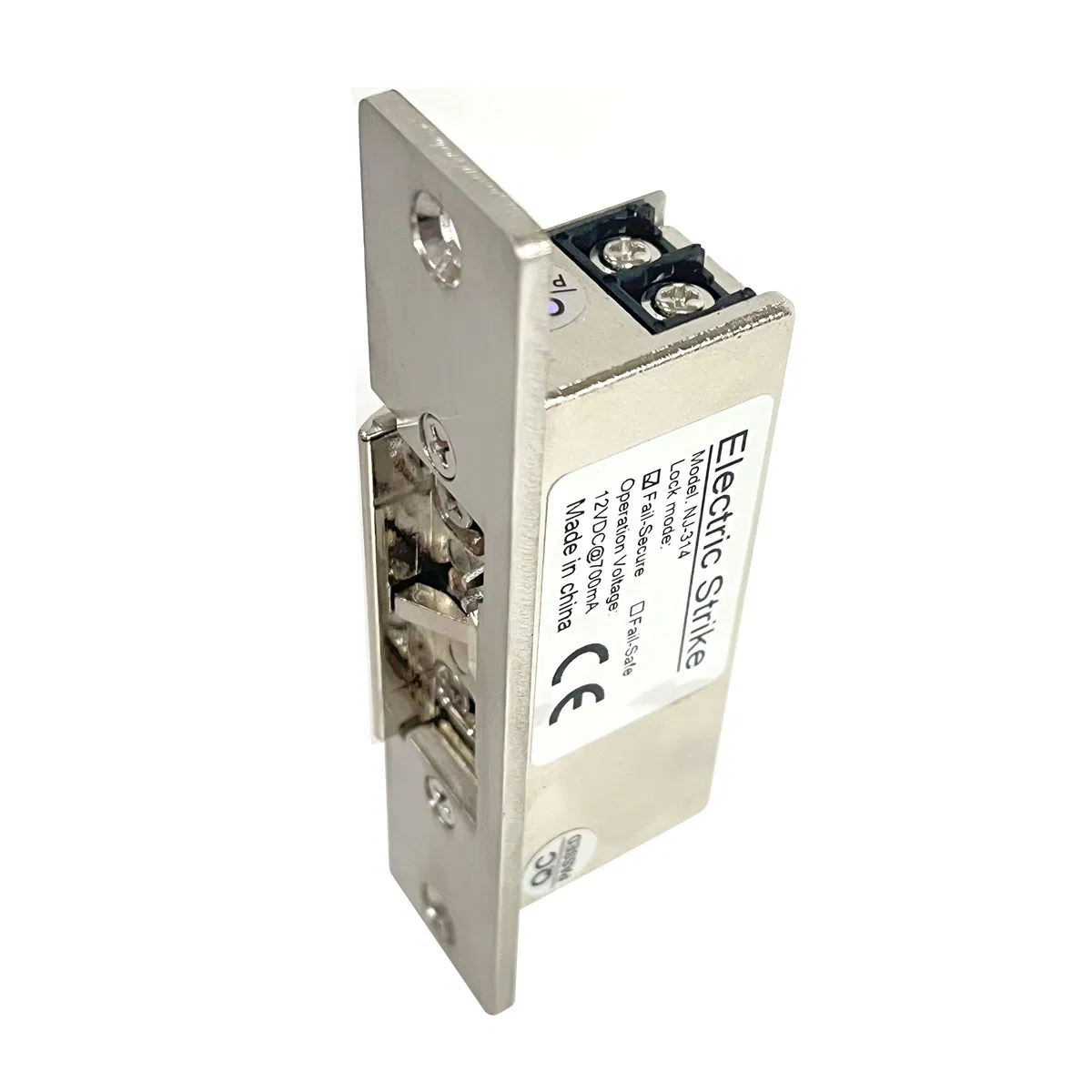

NJ-314 European Standard Adjustable Strike Lock

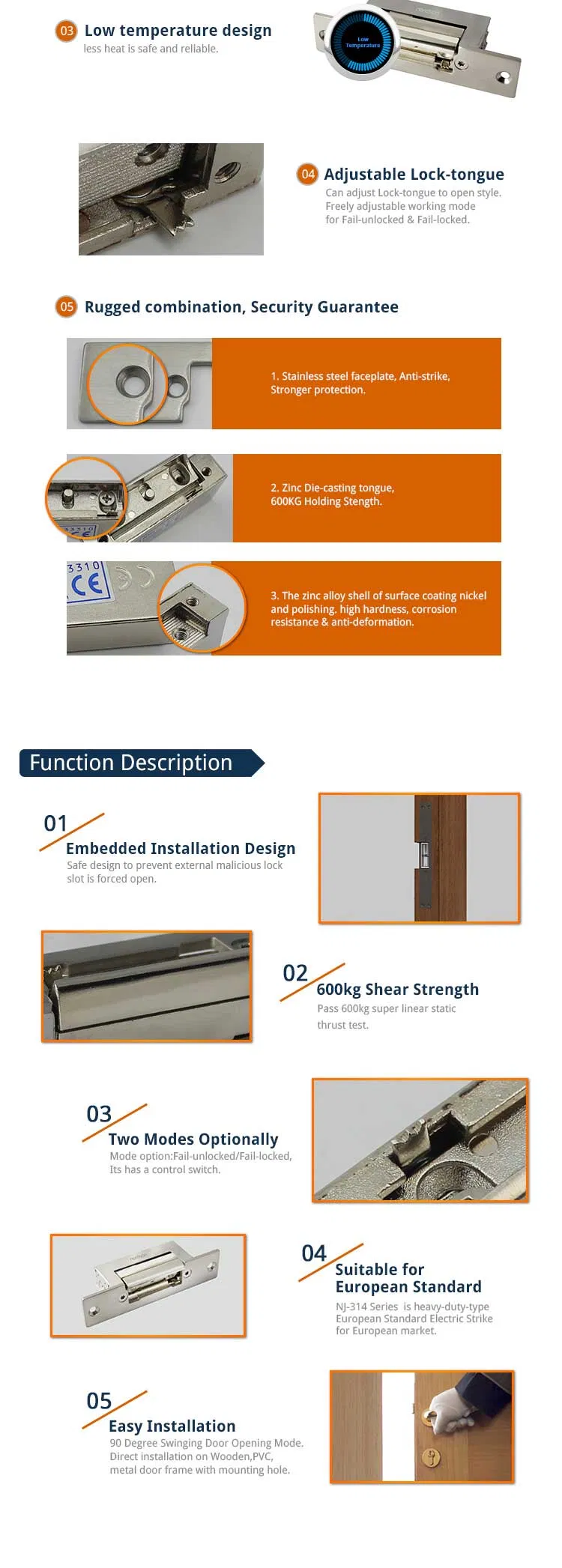

The NJ-314 is a premium European standard electric strike lock featuring an adjustable mode for both Fail-Locked and Fail-Unlocked configurations. It operates using magnetic force generated by an electromagnetic field for secure locking and unlocking, enhanced with short-circuit protection for increased safety.
Built from high-quality aluminum, this model offers exceptional hardness, corrosion resistance, and anti-deformation properties. It is an ideal security solution for various door types including wooden, metal, PVC, and glass doors.
🟦 PRODUCT SPECIFICATIONS
| Version |
Fail-unlocked (Adjustable to Fail-locked style) |
| Holding Force |
1000Lbs (500kg) |
| Voltage |
DC 12V |
| Standby Current |
650mA |
| Material |
High-Grade Aluminum |
| Working Temp |
-10°C to +55°C |
| Suitable For |
Wooden, Aluminum, Glass, Metal & Fireproof Doors |
| Dimensions |

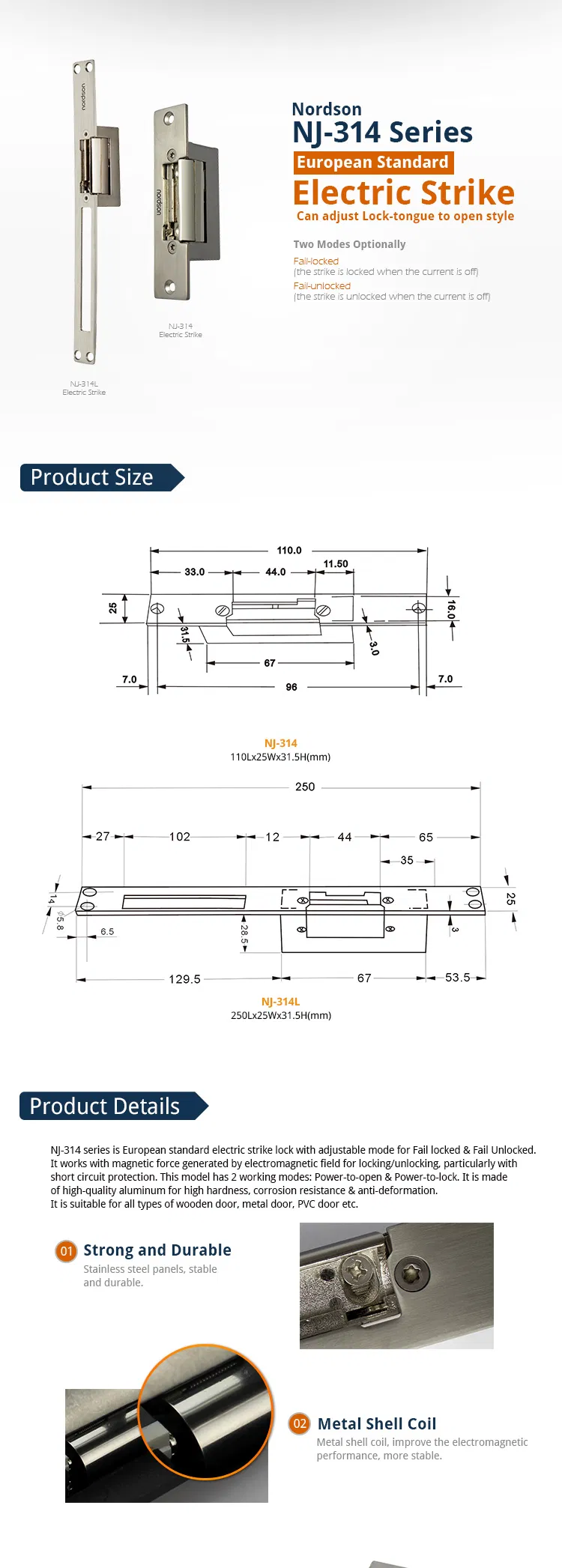

110L x 25W x 31.5H (mm) |
| Compliance |
CE-mark, RoHS-mark |
🟦 PACKAGING & WARRANTY
Packaging: Neutral Package.
Delivery: Small quantities are processed within 1-5 working days; larger orders within 14 working days upon remittance.
Warranty Terms:
- Three-year warranty for electric strikes and electric bolts.
- One-year warranty for exit buttons, brackets, and power supply units.
🟦 FREQUENTLY ASKED QUESTIONS

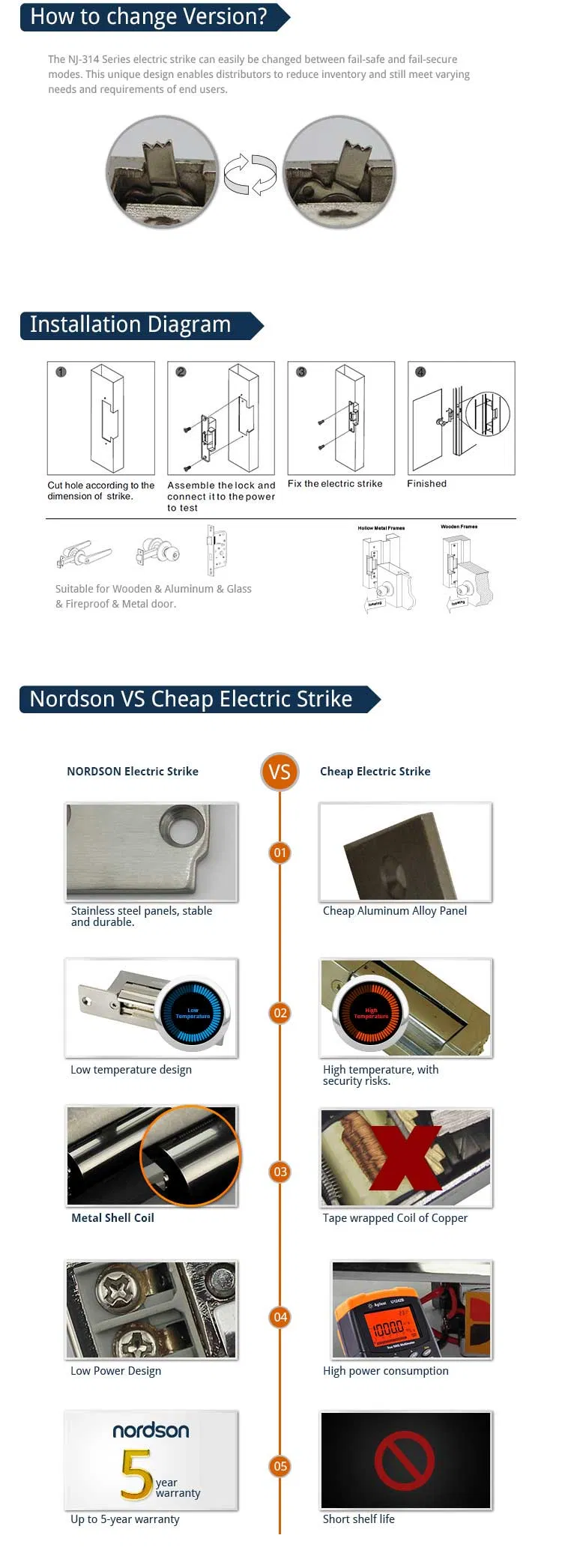

1. Can this lock be switched between Fail-Safe and Fail-Secure?
Yes, the NJ-314 features an adjustable lock-tongue that allows you to switch between Fail-Unlocked (Fail-Safe) and Fail-Locked (Fail-Secure) modes based on your security requirements.
2. What is the maximum holding force of this electric strike?
This lock provides a shear strength/holding force of up to 1000lbs (approximately 500kg), making it suitable for high-security applications.
3. What type of power supply is required for operation?
The lock operates on a rated voltage of DC 12V with a standby current of 650mA.
4. Which door materials is this lock compatible with?
The NJ-314 is designed for European standard narrow frames and is compatible with wooden, aluminum, glass, PVC, and metal doors.
5. Is the lock resistant to extreme temperatures?
Yes, the lock is designed to operate within an ambient temperature range of -10°C to +55°C and features a low-temperature surface design.
6. Does the product meet international safety standards?
Yes, the product is fully certified with CE and RoHS markings, ensuring compliance with international building and electronic safety standards.
