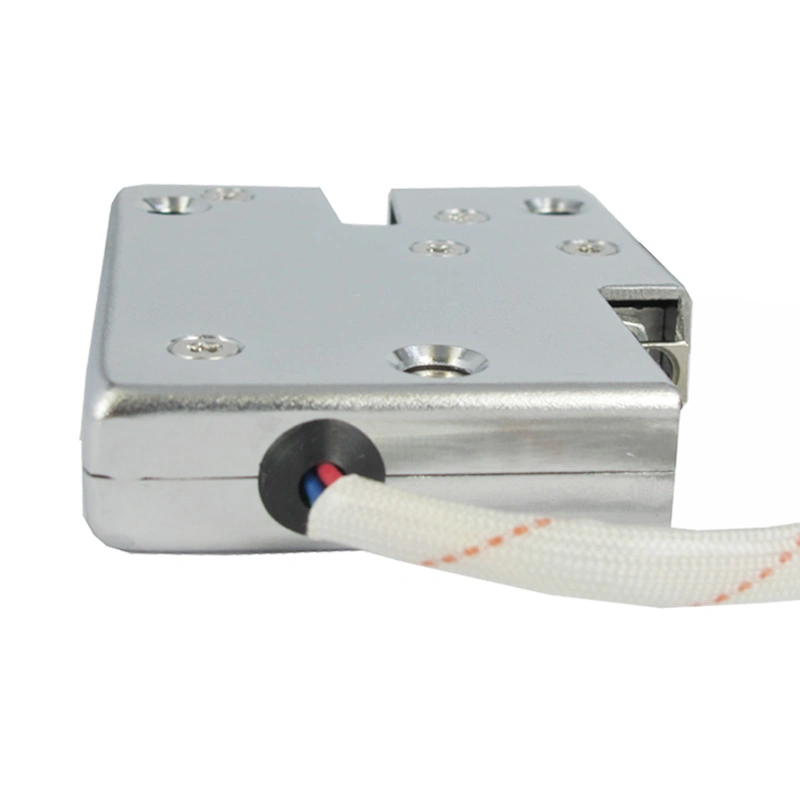

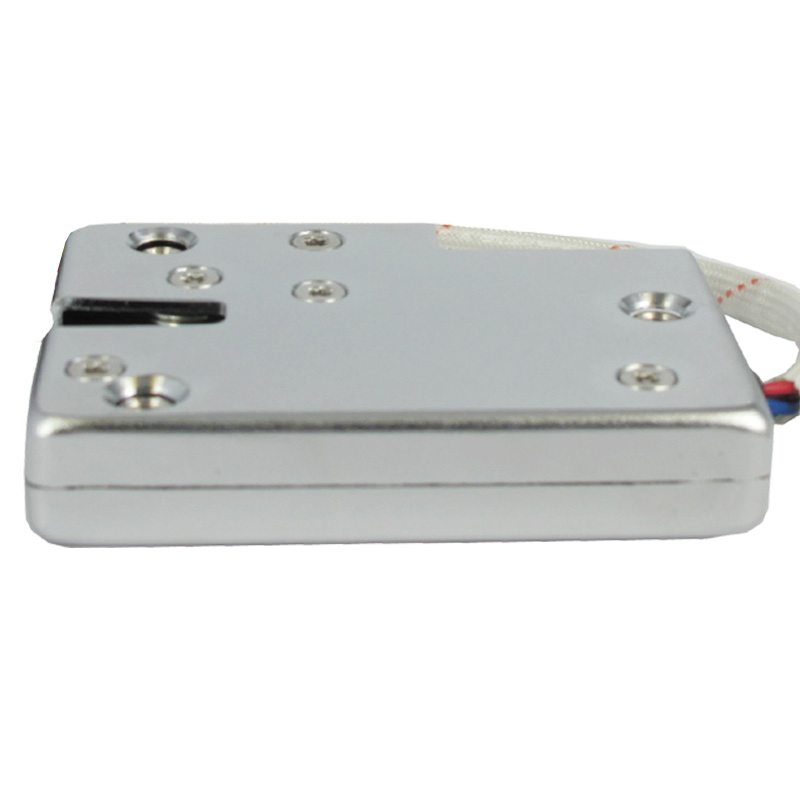

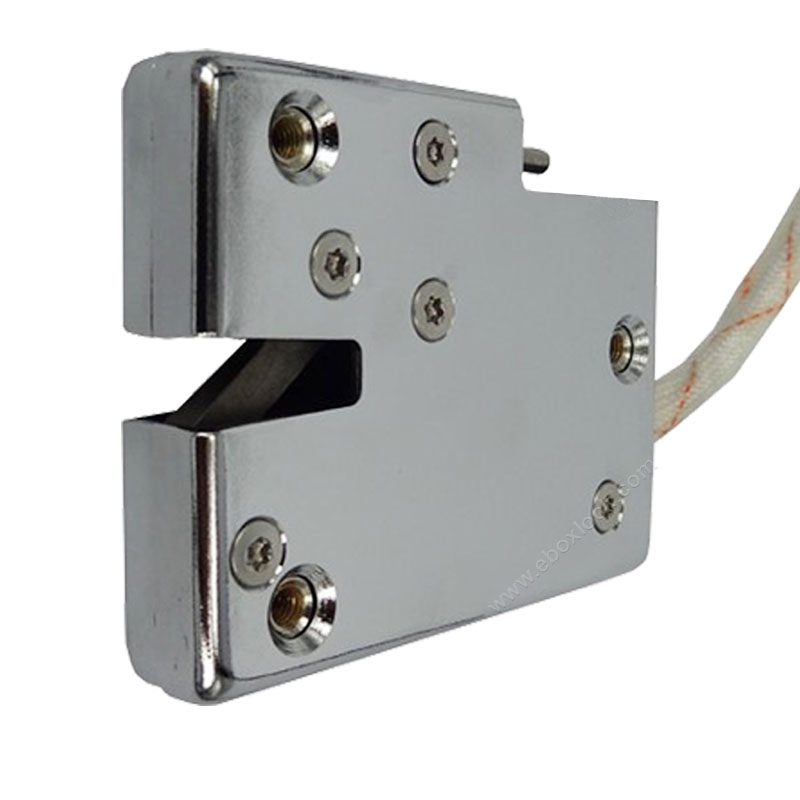

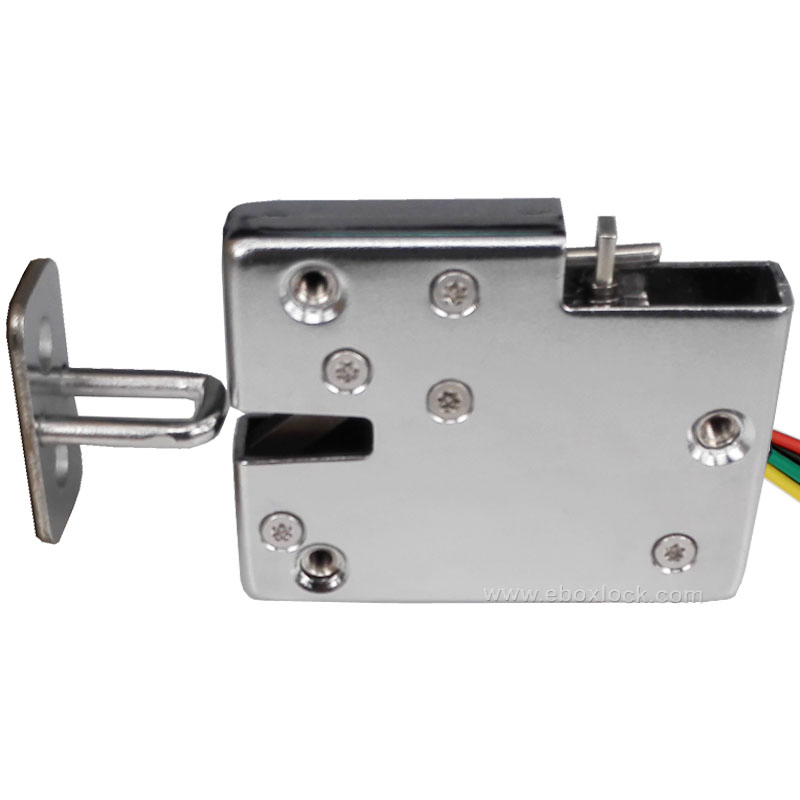

Electric Lock for Cabinets and Electronic Lockers with Door Status Reporting (MA1208LS)
Electric Lock for Cabinets and Electronic Lockers with Door Status Reporting (MA1208LS)
Electric Lock for Cabinets and Electronic Lockers with Door Status Reporting (MA1208LS)
Electric Lock for Cabinets and Electronic Lockers with Door Status Reporting (MA1208LS)
Electric Lock for Cabinets and Electronic Lockers with Door Status Reporting (MA1208LS)
1 / 5
Electric Lock for Cabinets and Electronic Lockers with Door Status Reporting (MA1208LS)
Electric Lock for Cabinets and Electronic Lockers with Door Status Reporting (MA1208LS)
Electric Lock for Cabinets and Electronic Lockers with Door Status Reporting (MA1208LS)
Electric Lock for Cabinets and Electronic Lockers with Door Status Reporting (MA1208LS)
Electric Lock for Cabinets and Electronic Lockers with Door Status Reporting (MA1208LS)

Electric Lock for Cabinets and Electronic Lockers with Door Status Reporting (MA1208LS)

Customization: Available
After-sales Service: Online Service/Refund/Replacement
Warranty: 2 Years Warranty
Send Inquiry

Product Description

Basic Information
Model NO.
MA1208LS
Certification
RoHS, FCC, CE
Working Principle
Electronically Controlled Lock
Function
Fail-Secure
Operation Voltage
12/24VDC
Holding Force
150kg
Cycle Rating
More Than 1,000,000 Times
Dimensions
72mm*56mm*13.8mm
Protection Class
IP20/IP35
Product Overview

The Electric Cabinet Lock (MA1208LS) is a compact and all-metal lock with monitoring, ideal for cabinets, drawers, and lockers. Surface mounting either vertically or horizontally offers easy and flexible installation. Compatible with any existing access control system, it allows mechanical override for emergency openings. It is energy-saving, cost-efficient, and robust.

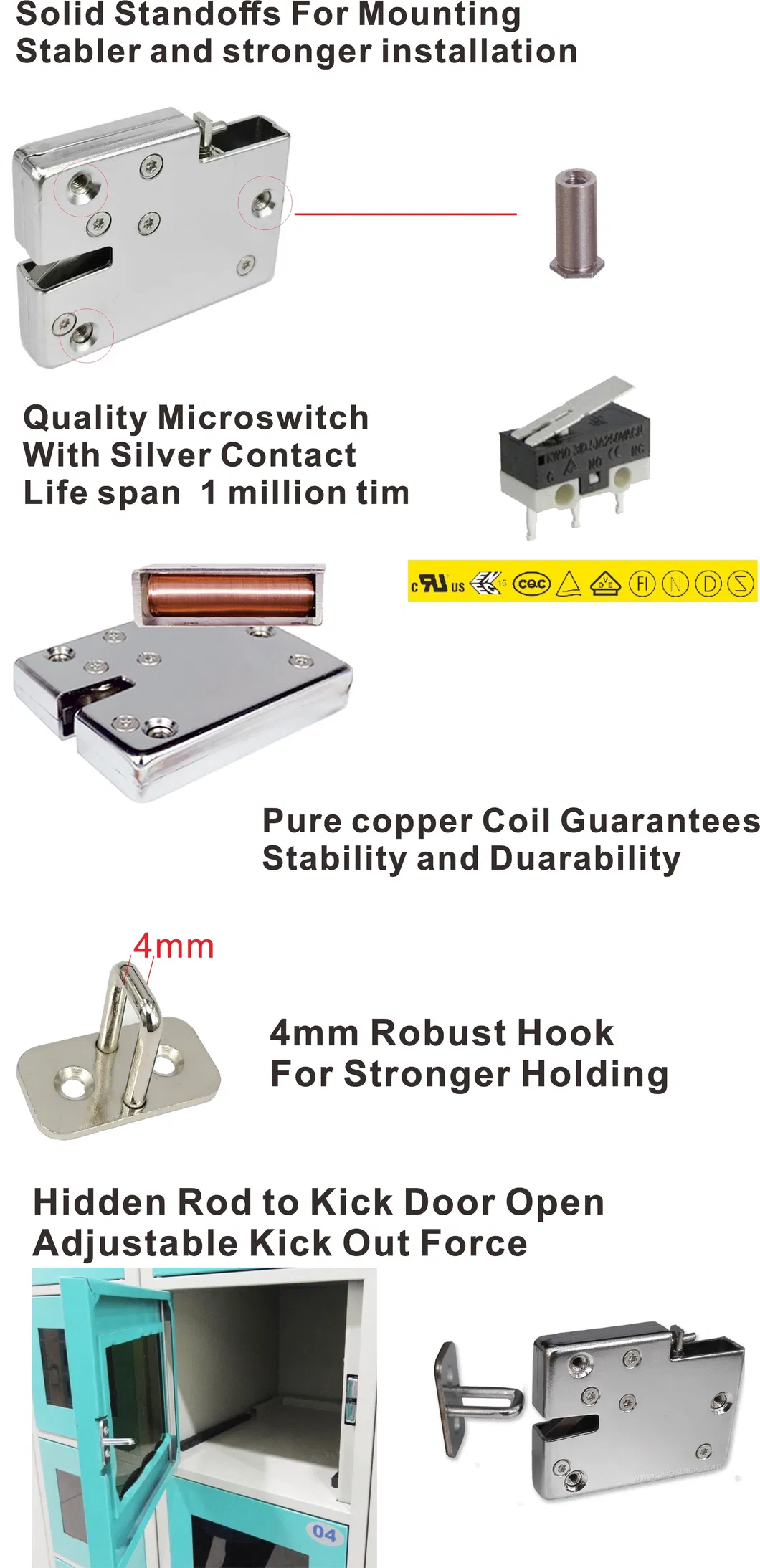

Electric Cabinet Lock View 1

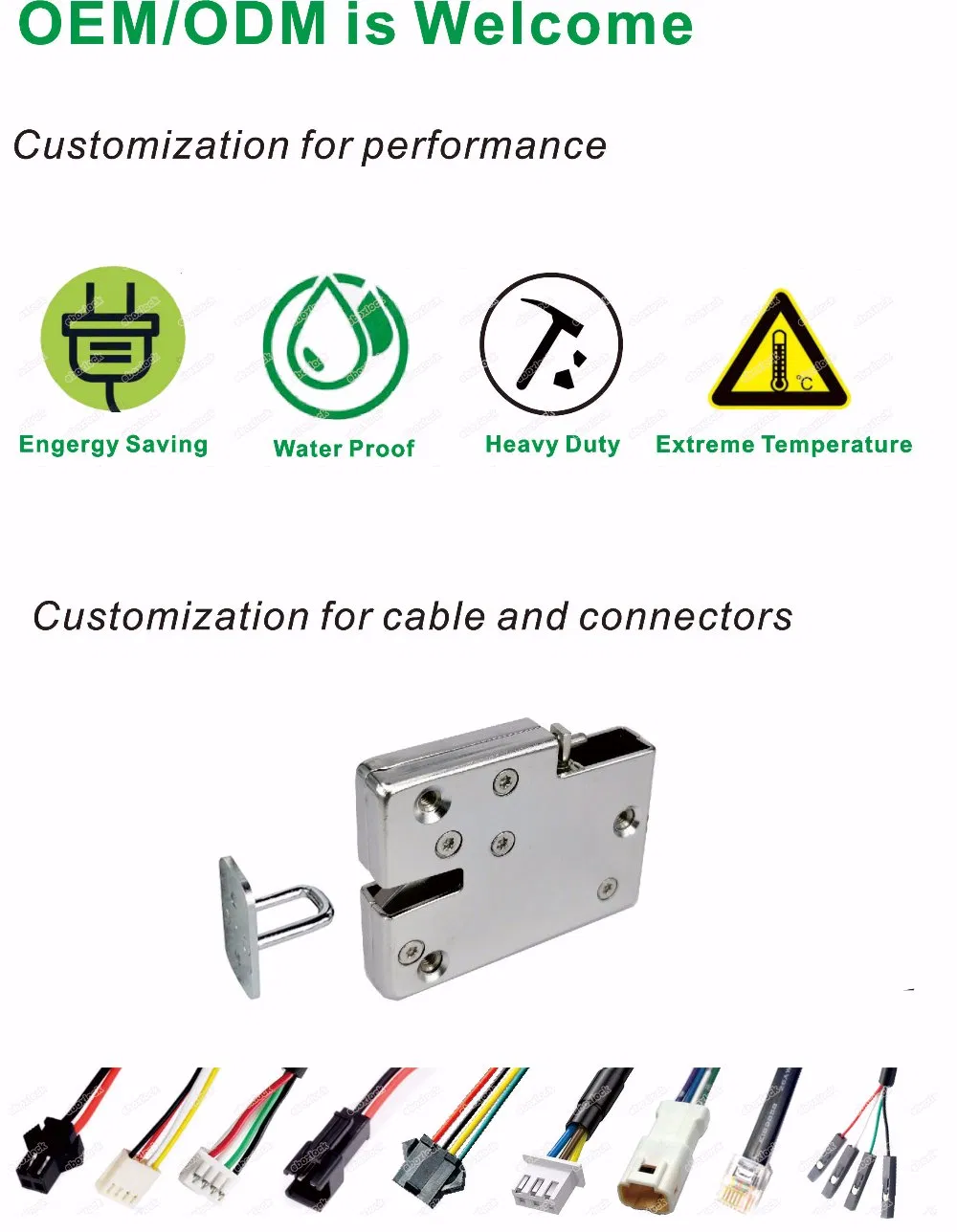

Electric Cabinet Lock View 2
Key Features
Available in 12VDC or 24VDC
Superior heavy duty metal construction
Convenient mechanical override for emergency release
Three-bolt regular triangle mounting for high security
Optional internal lock switch for status detection
2 years limited warranty
Customization Options

We offer customization for cable length and connector type to meet exact application requirements.

Voltage Current Trigger Spring Mounting Holes Material Cable Connector
9V / 12V / 24V / 48V 800mA - 2000mA 5N / 7N / 15N / 18N M4x12 thread / thru Steel / Stainless Steel Twisted / RVV / Flat Molex / KF2510 / PH / RJ11
Applications
Parcel Delivery Lockers
Smart Lockers & Vending Machines
Telecommunication Kiosks
Bank Locker Kiosks & Cash Drawers
Electronic Mailboxes
Electronic Motorcycle Trunks
Pharmaceutical Cabinets
Keyless Refrigerator Lockers

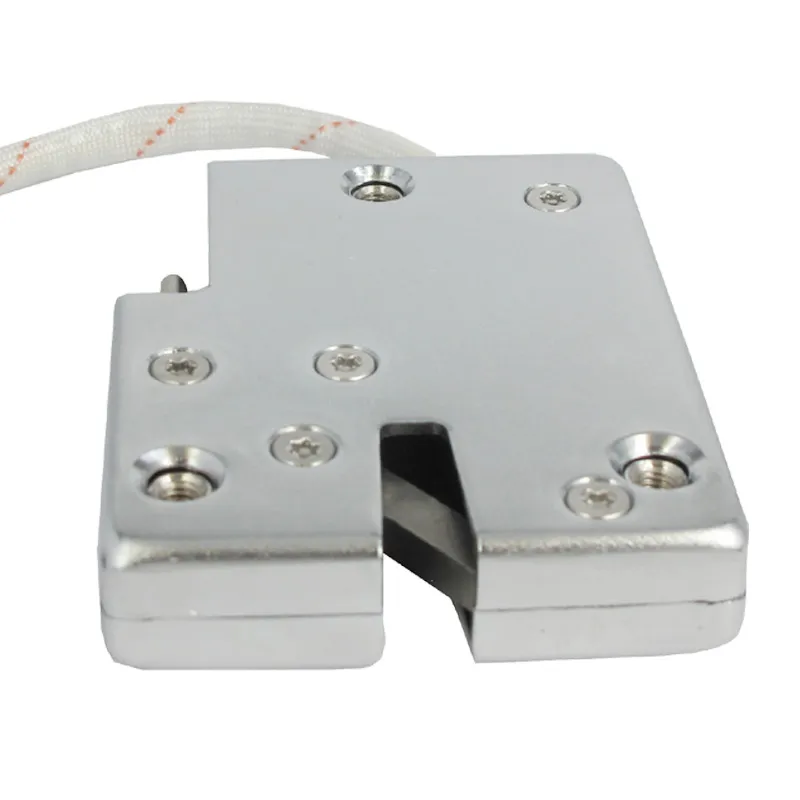

Lock Dimensions

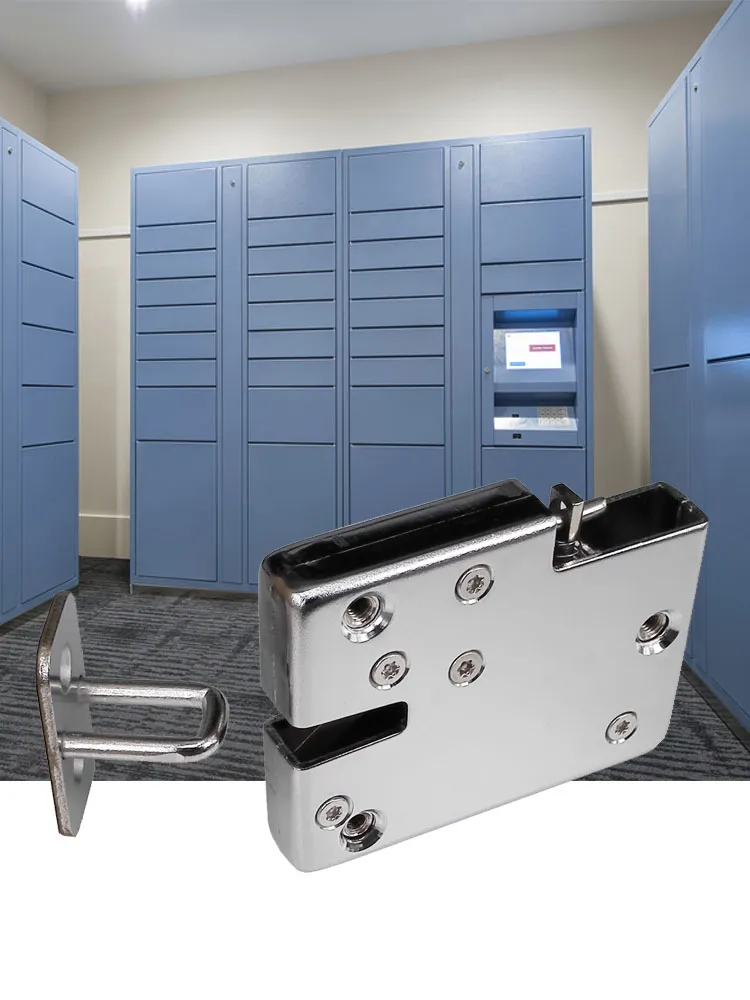

Application Scenario

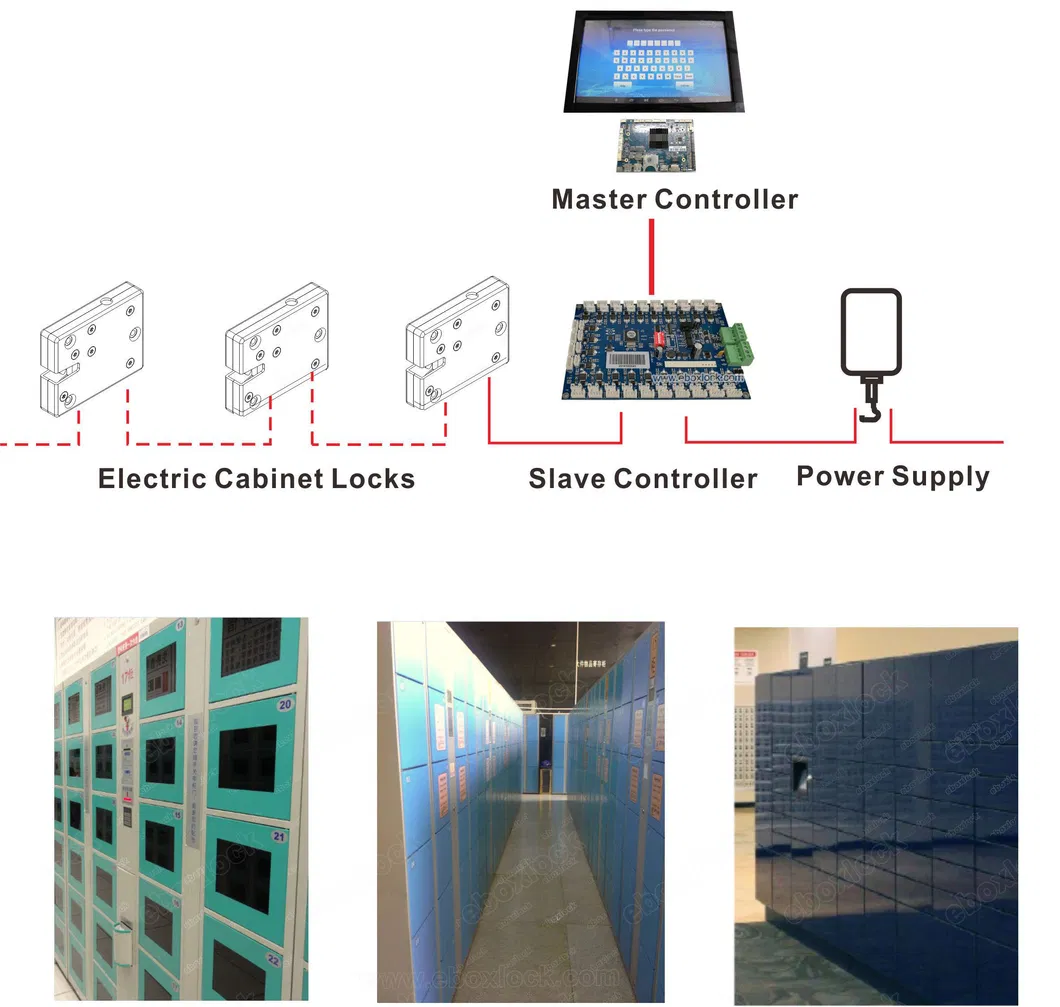

Installation Guide
Packaging & Logistics
Package Size
145mm x 80mm x 70mm
Gross Weight
0.250kg
Included
1x Lock body, 1x Hook, Mounting Screws
Professional Packaging
Shipment Options
Frequently Asked Questions
Q1: What is the holding force of the MA1208LS lock?
A: The lock provides a robust holding force of 150kg, making it suitable for high-security cabinet and locker applications.
Q2: Can the lock be opened manually in case of power failure?
A: Yes, it features a mechanical override that enables manual release during emergency power failures.
Q3: Is the lock compatible with 24V systems?
A: Yes, the lock is available in both 12VDC and 24VDC configurations to suit different power requirements.
Q4: What is the expected lifespan of this electric lock?
A: It is designed for high durability with a cycle rating of more than 1,000,000 operations.
Q5: What materials are used for customization?
A: We offer both standard Steel and optional Stainless Steel 304 construction for various environmental needs.
Q6: Does it provide feedback on the door status?
A: Yes, there is an optional internal lock switch (microswitch) that provides an output signal for remote monitoring of open/close status.
