Japanese Safety Zinc Rising Butt Hinge
Japanese Safety Zinc Rising Butt Hinge
Japanese Safety Zinc Rising Butt Hinge
Japanese Safety Zinc Rising Butt Hinge
Japanese Safety Zinc Rising Butt Hinge
1 / 5
Japanese Safety Zinc Rising Butt Hinge
Japanese Safety Zinc Rising Butt Hinge
Japanese Safety Zinc Rising Butt Hinge
Japanese Safety Zinc Rising Butt Hinge
Japanese Safety Zinc Rising Butt Hinge

Japanese Safety Zinc Rising Butt Hinge

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
SG-3DP2
Name
Japanese Safety Zinc Rising Butt Hinge
Material
Iron, Zinc Alloy, SPCC
Size
102*98*2.5mm
Max. Door Weight
40kg / 2 pieces
Min. Door Thickness
40mm
3D Adjustment
Up-Down/Left-Right/Front-Back: 2mm
Production Capacity
500,000 PCS/Month
Origin
China
HS Code
8302100000
✓

Product Specifications

NameJapanese safety zinc rising butt hinge
Suitable forWooden door, entrance door, interior door, etc.
TypeJapan type concealed door hinge.
Size102*98*2.5mm (L*W*H)
Opening Angle175°
Min. Door Thickness40mm
Max. Door Weight40kg/2pcs
InstallationLeft and right universal
MaterialIron
FinishingSatin nickel, satin chrome, copper, brass, pearl chrome, etc.
📷

Product Display

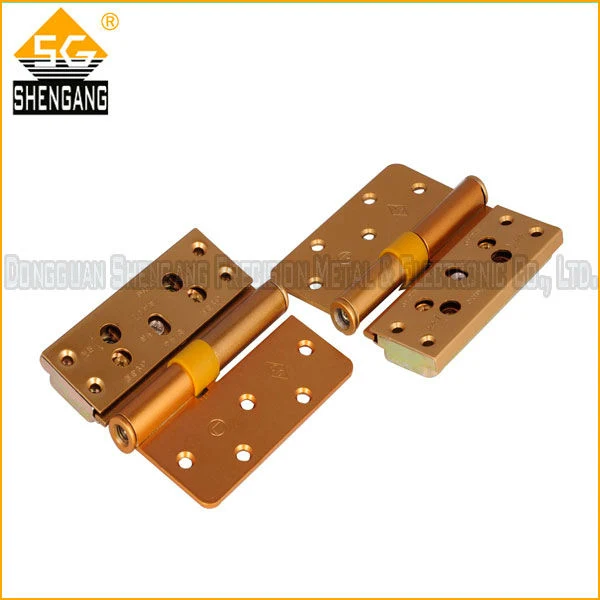

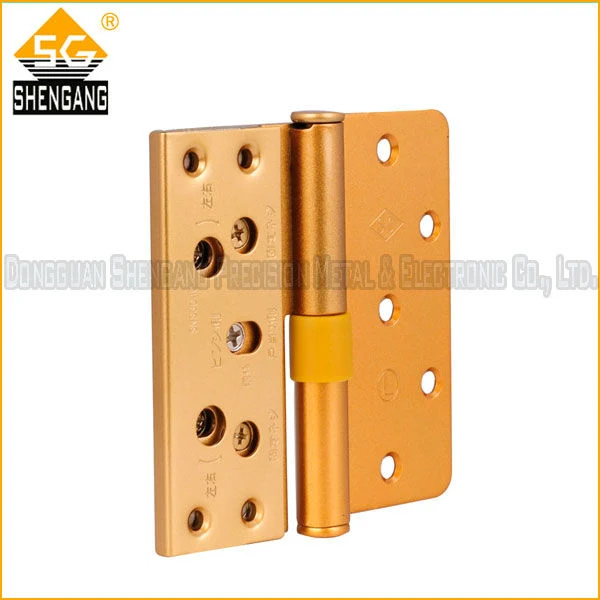

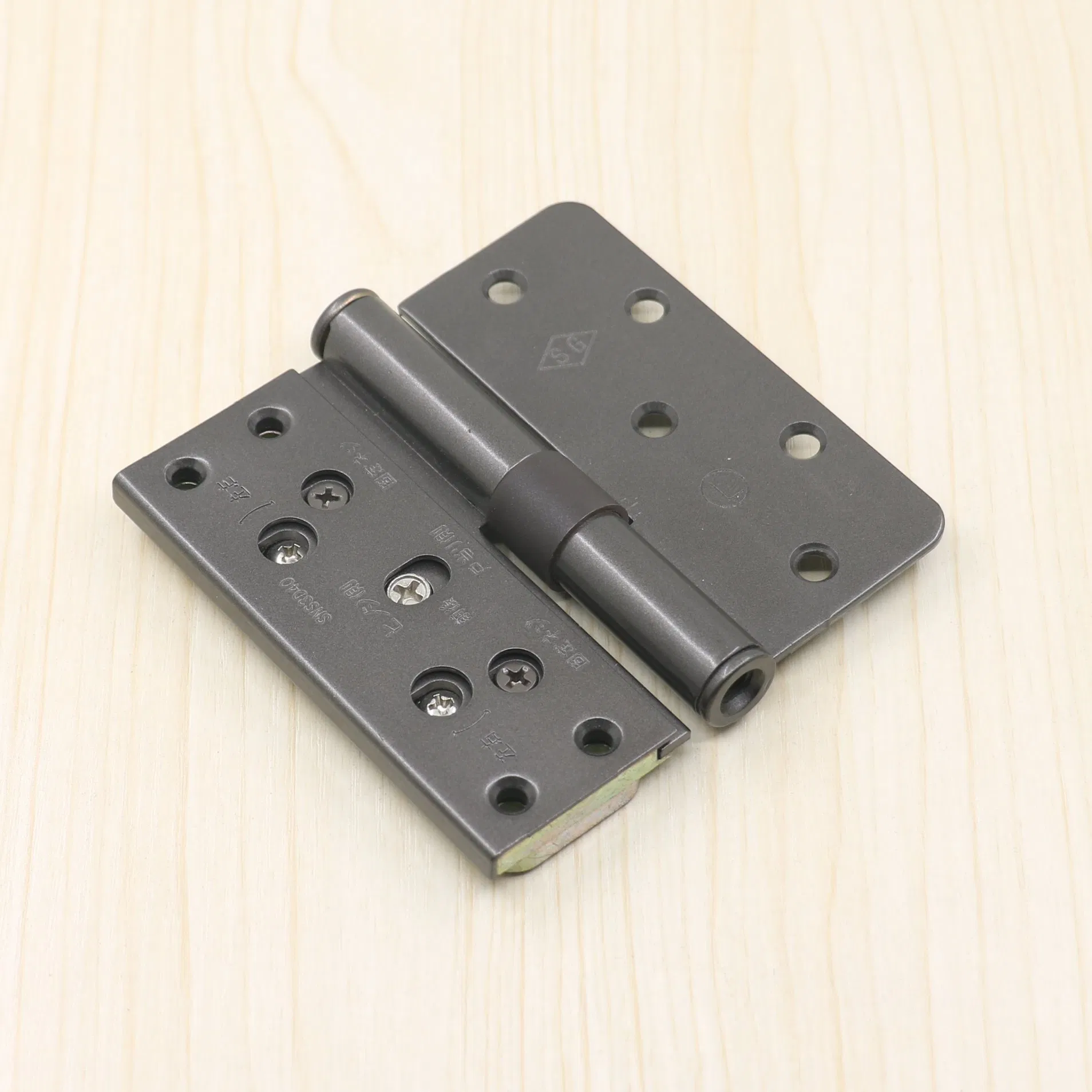

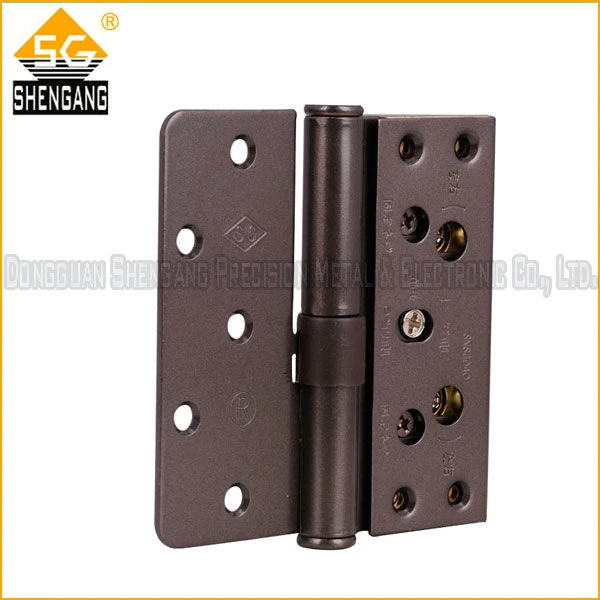

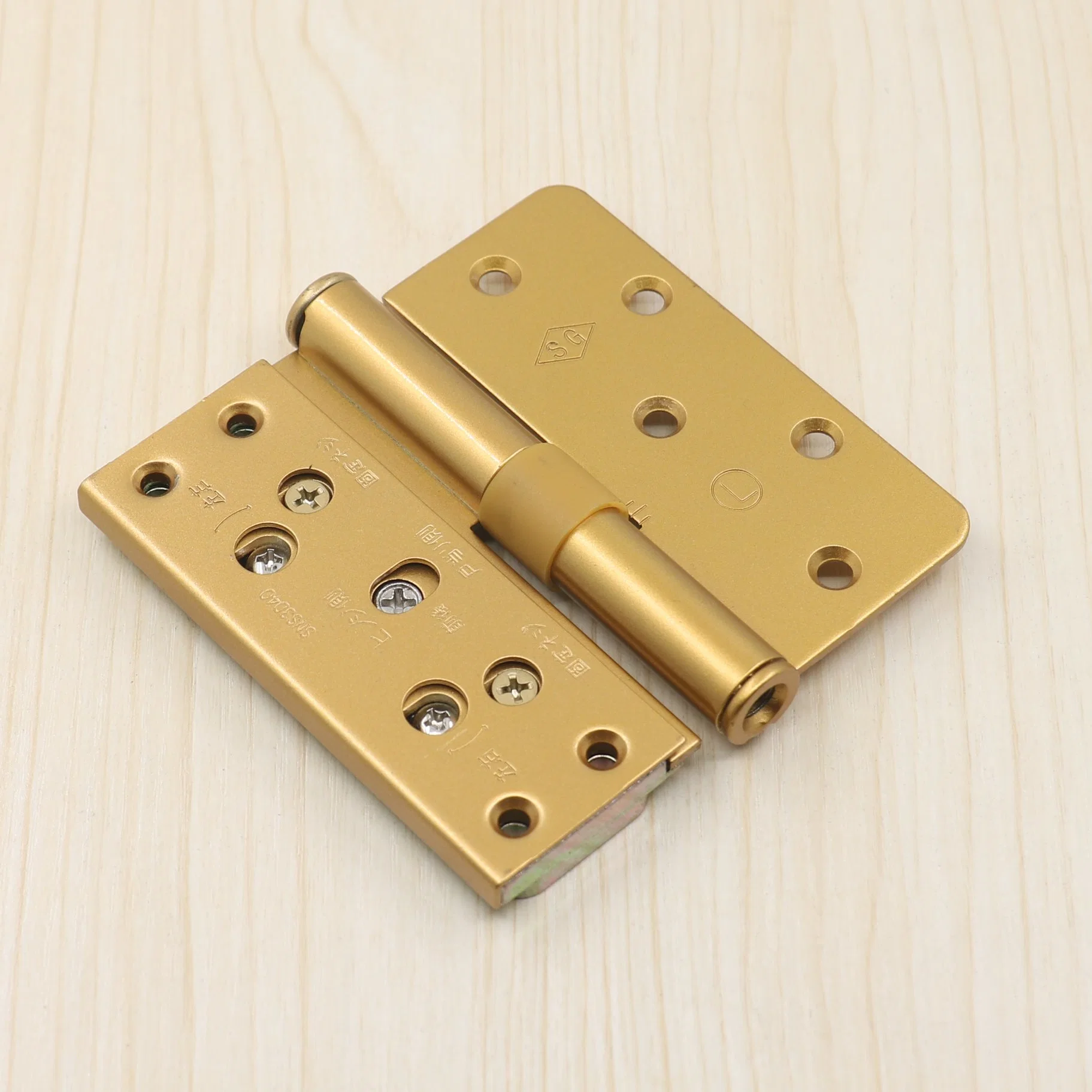

Japanese Safety Zinc Rising Butt Hinge View 1
Japanese Safety Zinc Rising Butt Hinge View 2

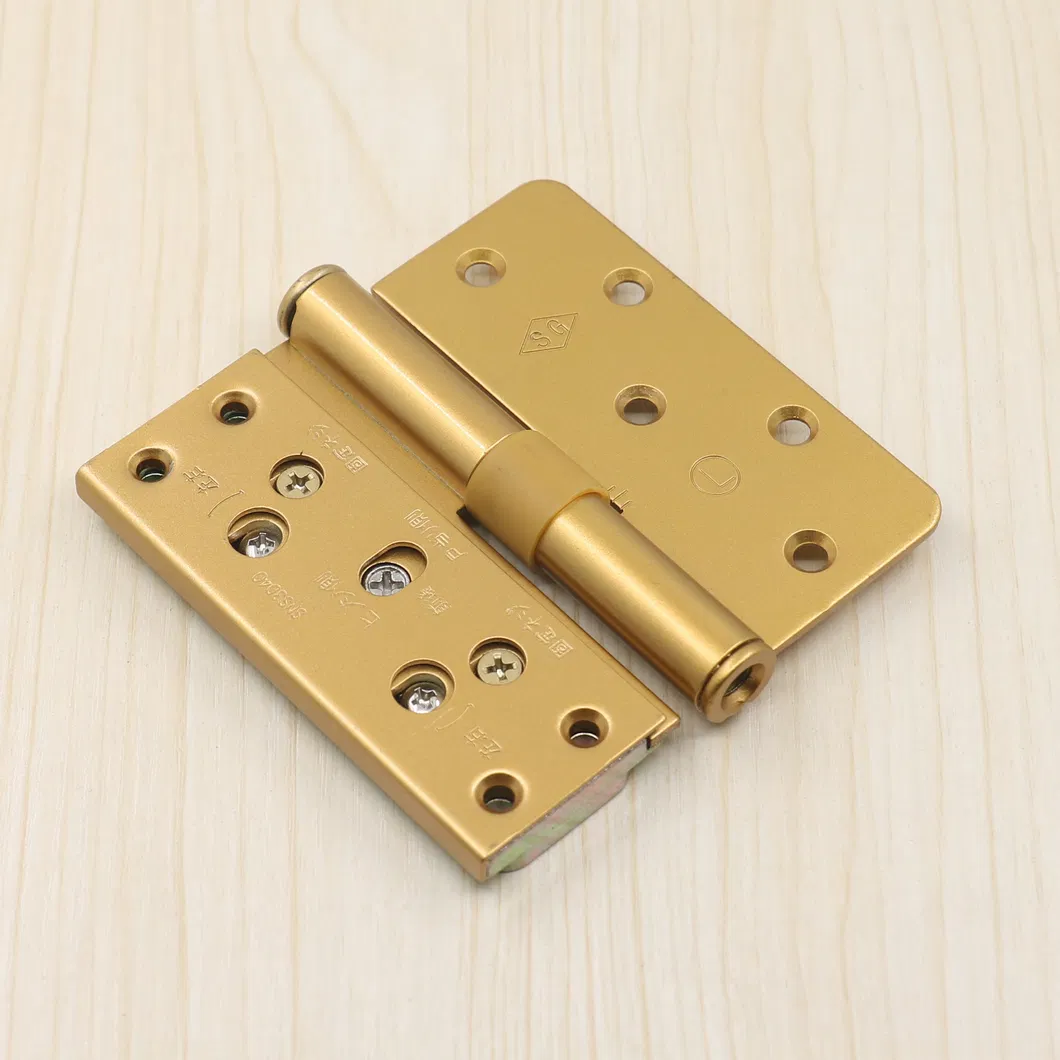

Japanese Safety Zinc Rising Butt Hinge View 3
Japanese Safety Zinc Rising Butt Hinge View 4

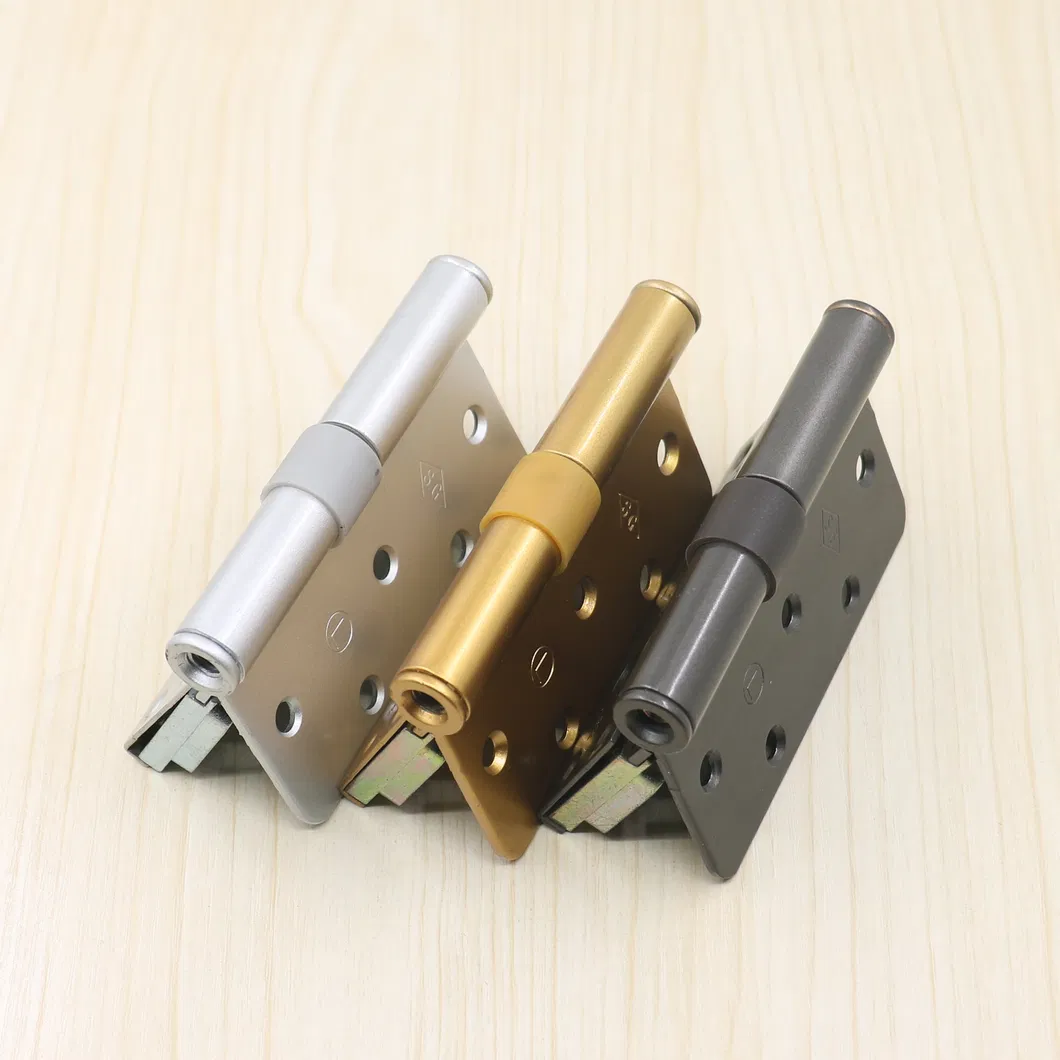

Japanese Safety Zinc Rising Butt Hinge View 5
?

Frequently Asked Questions

What materials are used for the SG-3DP2 hinge?
The hinge is primarily constructed from high-quality Iron, Zinc Alloy, and SPCC to ensure durability and safety.
What is the maximum load capacity for these hinges?
A pair (2 pieces) of these rising butt hinges can support a maximum door weight of up to 40kg.
Can this hinge be adjusted after installation?
Yes, it features 3D adjustability, allowing for 2mm adjustments in Up-Down, Left-Right, and Front-Back directions for a perfect fit.
What type of doors is this hinge suitable for?
It is specifically designed for wooden doors, including entrance doors and various interior doors.
What is the maximum opening angle of the hinge?
The SG-3DP2 hinge allows for a wide opening angle of up to 175°.
What finishes are available for this model?
Available finishes include Satin Nickel, Satin Chrome, Copper, Brass, and Pearl Chrome to match your interior design.
