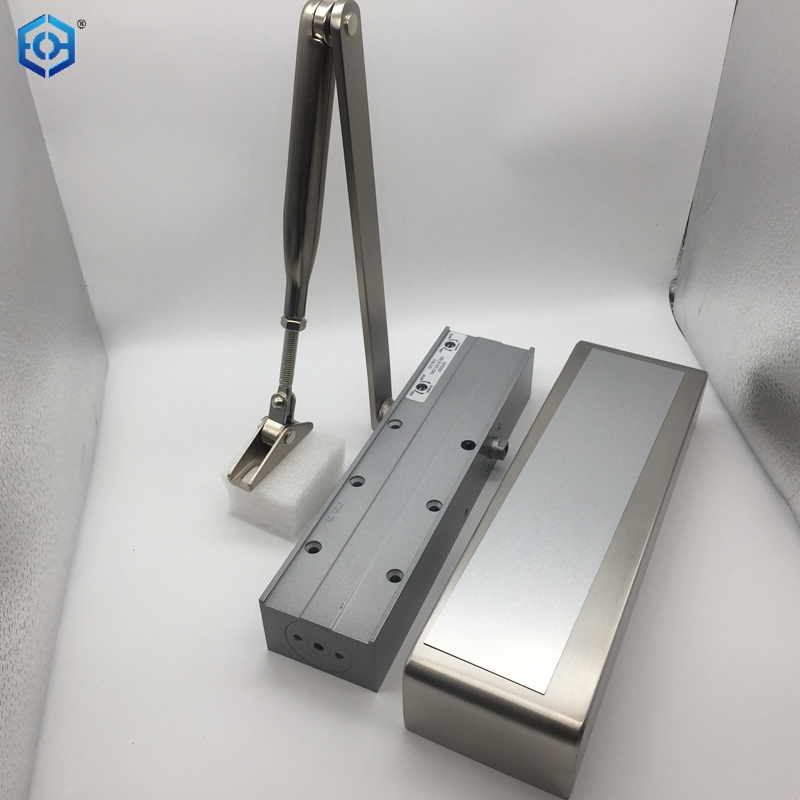

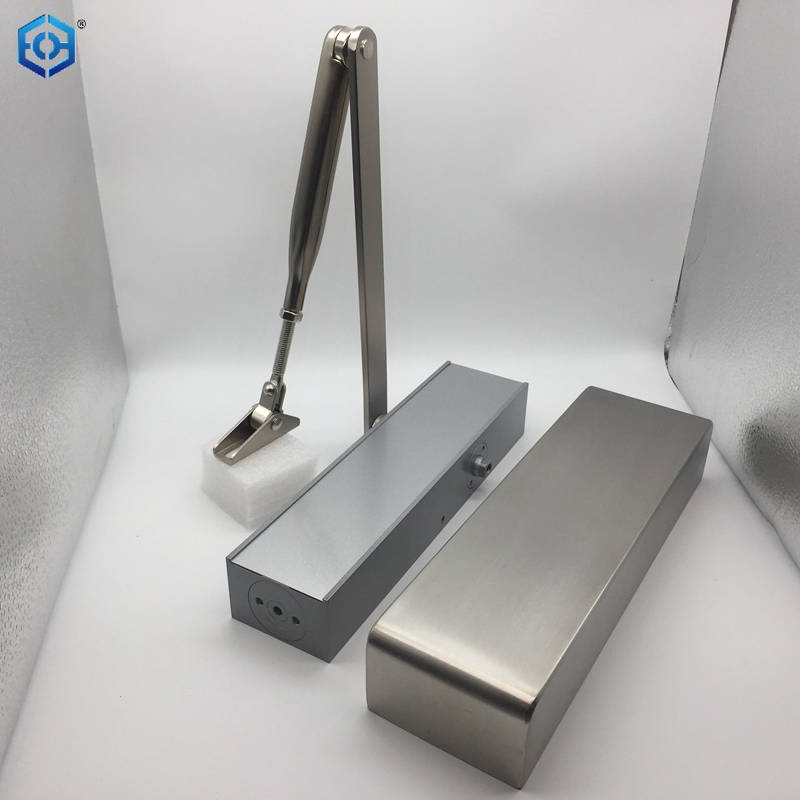

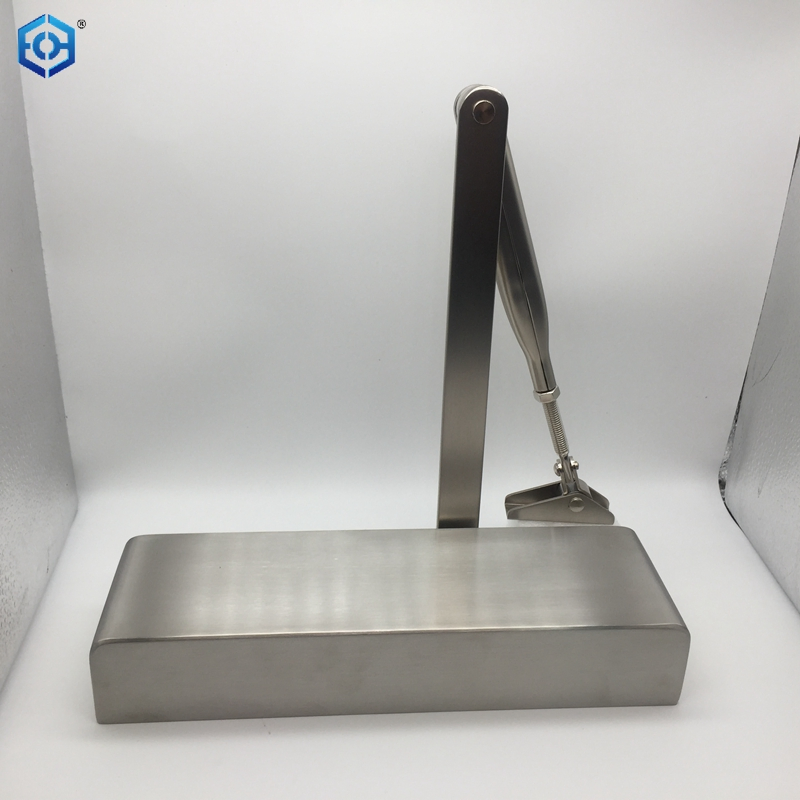

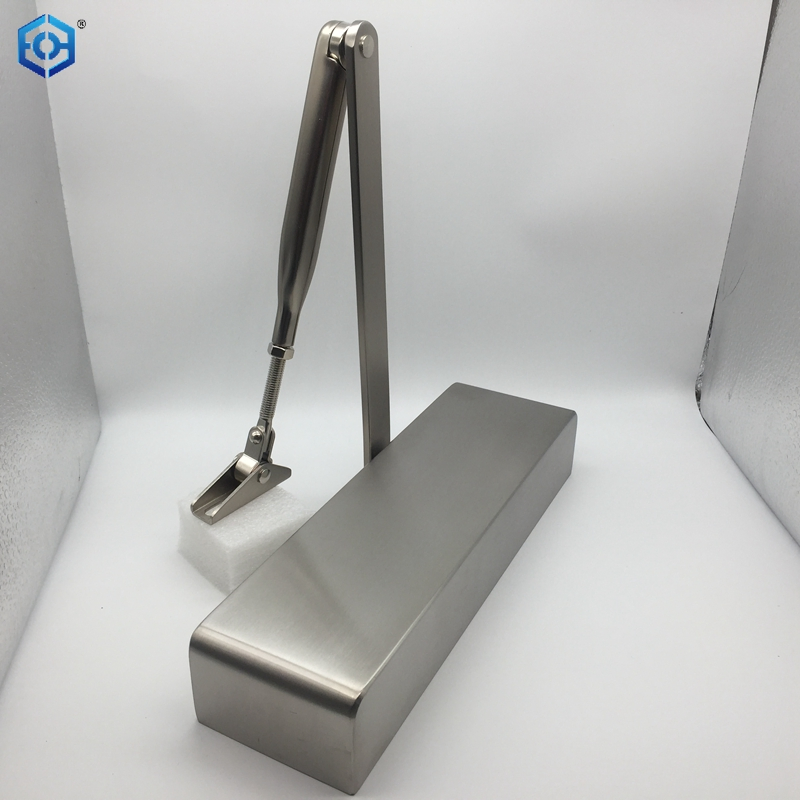

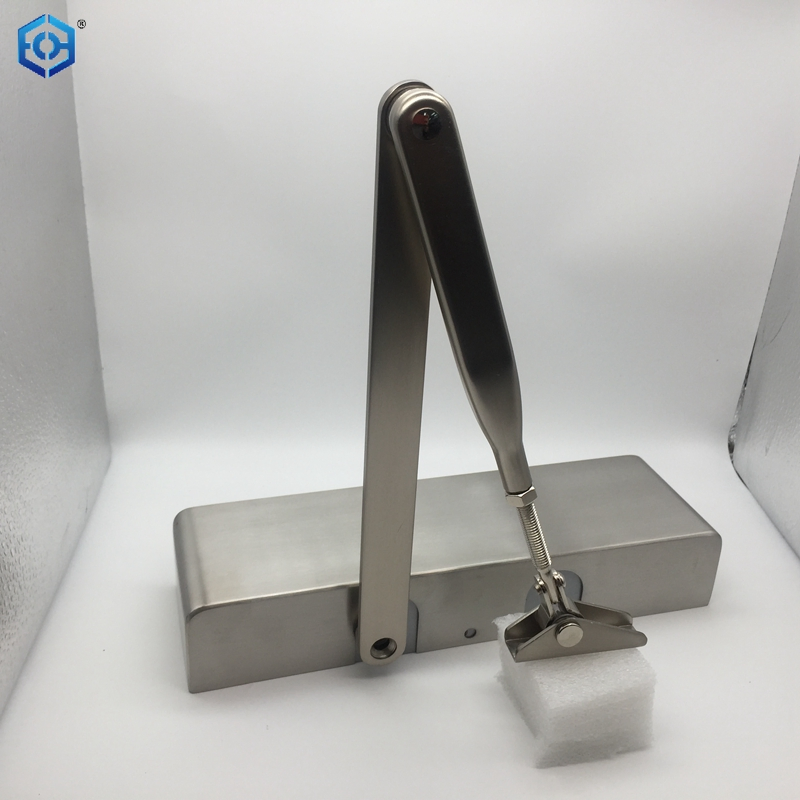

Surface Mounted Stainless Steel Support Arm Stainless Steel Cover Door Closer

1 / 5

Surface Mounted Stainless Steel Support Arm Stainless Steel Cover Door Closer

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

ECL505

Installation Type

Slide

Function

Stop

Standard

American Standard

Door Width

850-1250mm

Door Weight

25-120kg

Usage

Market, Fire Exits, Home, Hotel, Office, Hospital, School

Color

Black

Material

Aluminum Alloy

Package

White Box

Specification

237x60x40mm

Origin

Guangdong

Product Description & Advanced Functions

📌 Hold Function

Built-in hold function allowing the door to stop at 75°.

⚙️ Dual Control Valves

Closing (180°-15°) and latching (15°-0°) speeds are controlled by two separate regulating valves.

🛡️ Back Check Function

Provides resistance between 70° to maximum opening to prevent damage to the door or wall.

⏳ Delay Action

Adjustable delay from maximum opening to 65°, convenient for handicapped and elderly users.

♿ Barrier Free

Meets ADA regulations with reduced spring power for easier opening.

Product Name	UL Listed door closer
Certification	GVEV.R41359 - Swinging Fire Door Closers _ UL Product iQ
Material	Aluminum Alloy
Door Width/Weight	950mm / 40-65kg
Speed Control	Two way speed adjustable
Finish	Silver or to order
Suitable for	Wooden door, Metal door, Fire rated door, Escape door, Exit Door, etc.

Product Gallery

Quality Certifications

Our products adhere to international safety and quality standards, including:

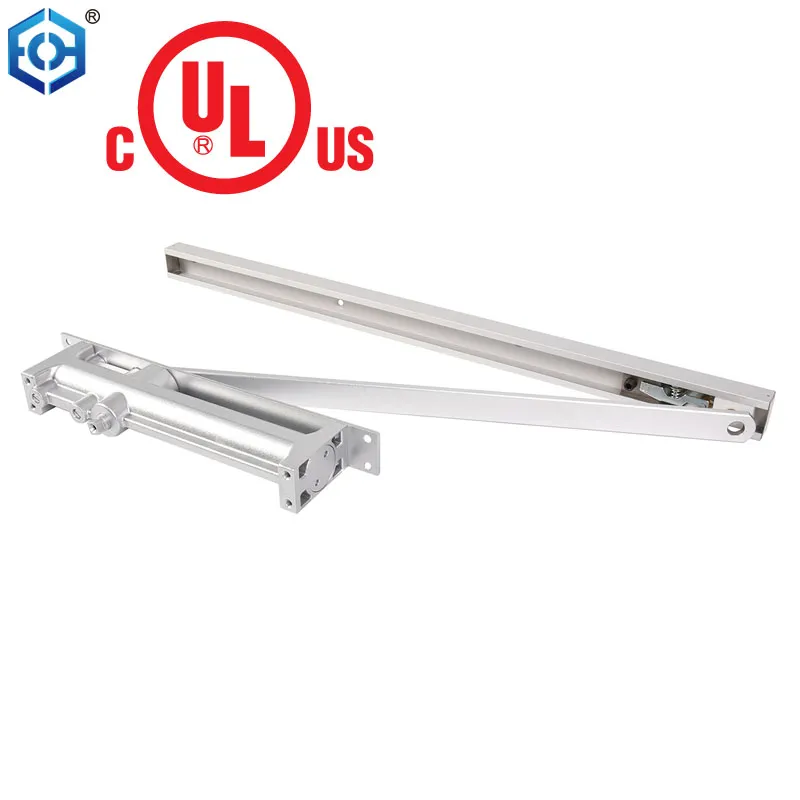

✅ UL Certificated R41359 and CE for door closer

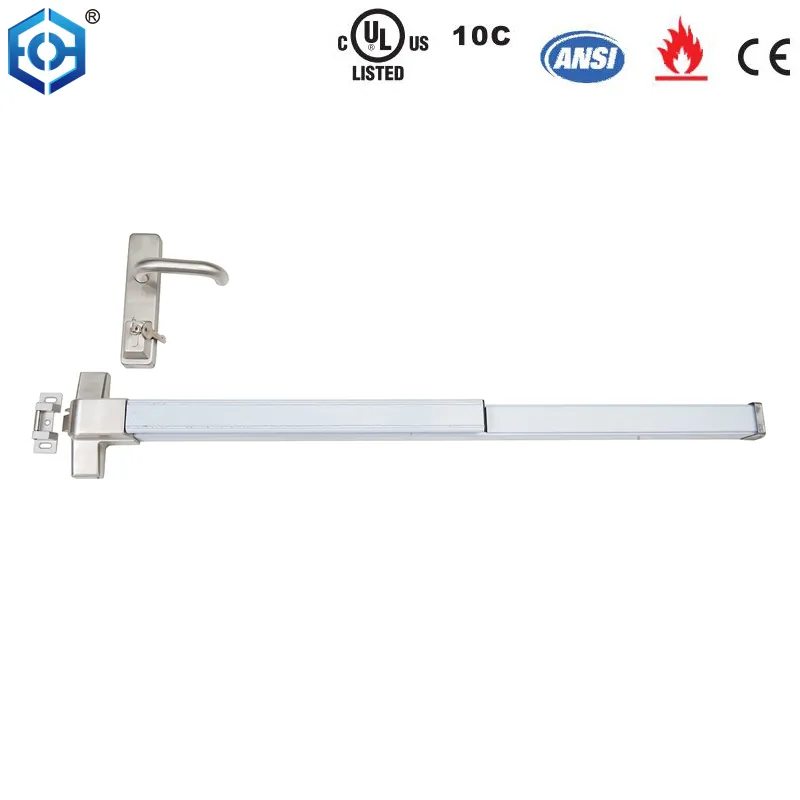

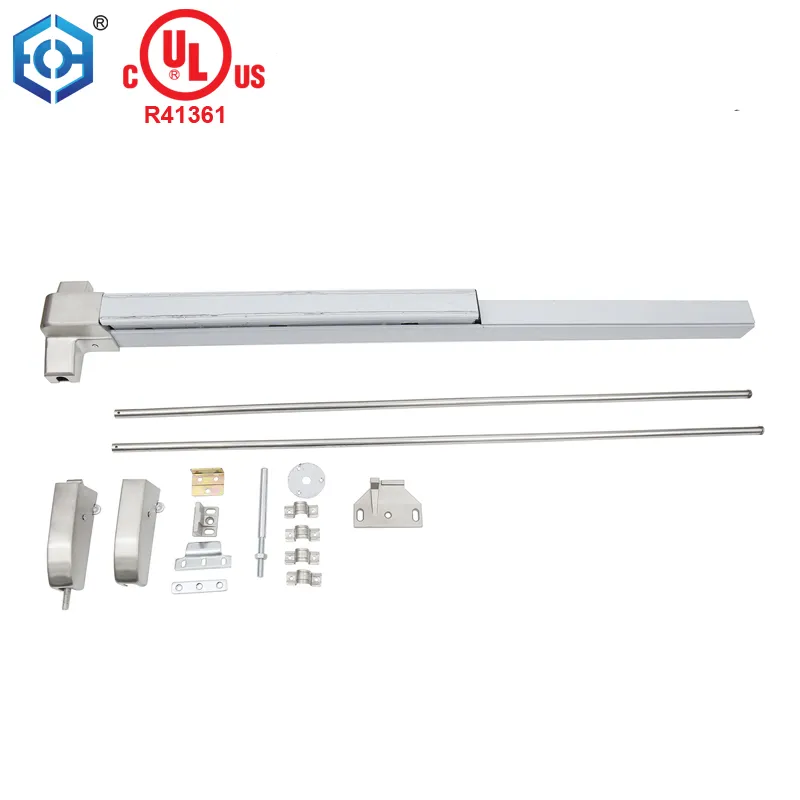

✅ UL Certificated R41361, SA46258 for panic exit device

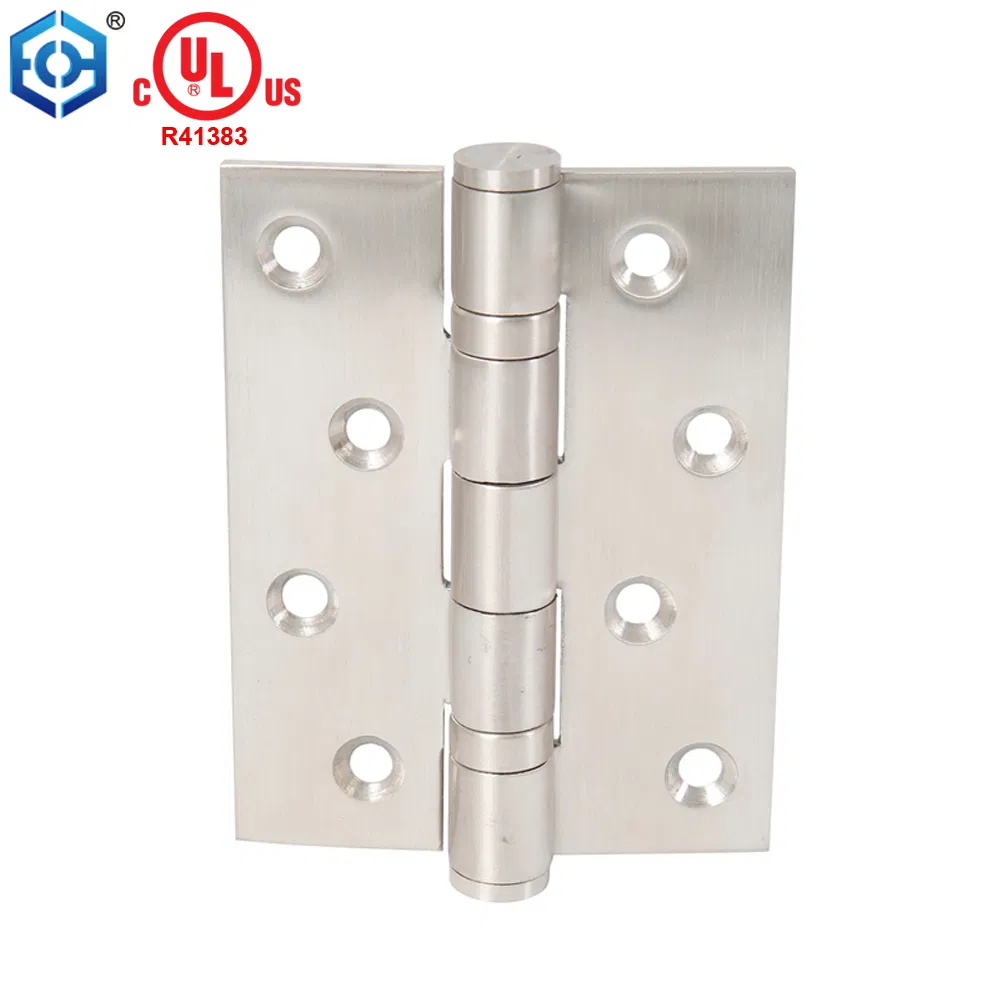

✅ UL Certificated R41383 and EN1935:2002 for Hinges

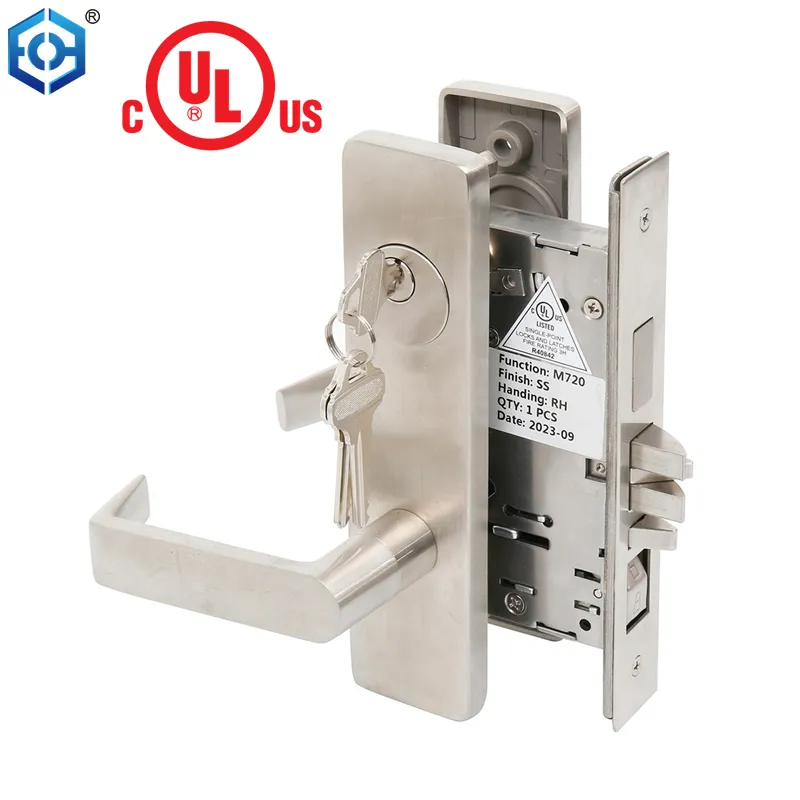

✅ UL Certificated R41710 for American door lock

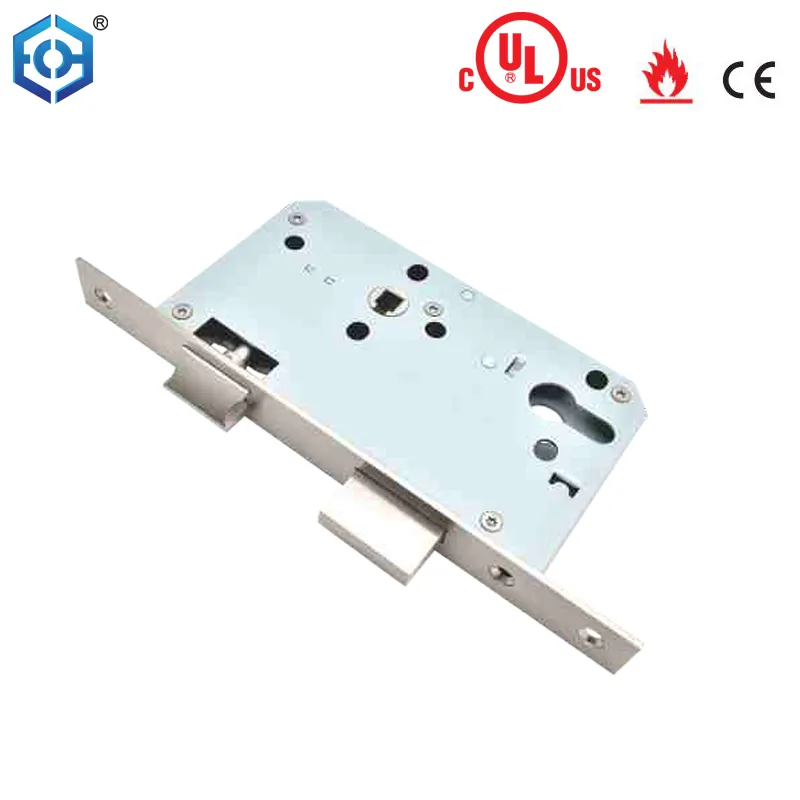

✅ EN12209:2016 for Locks and EN1906:2012 for Handles

Frequently Asked Questions

At what angle does the hold-open function activate?

The ECL505 model features a built-in hold function that allows the door to stop and stay open at 75°.

Is this door closer suitable for fire-rated doors?

Yes, it is UL Listed (R41359) specifically for use with swinging fire doors, meeting rigorous safety standards.

What weight and width of doors can this handle?

It is designed for door widths between 850mm and 1250mm, and can support door weights ranging from 25kg up to 120kg.

What is the "Back Check" function?

The back check function provides temporary resistance when the door is opened with excessive force between 70° and the maximum opening angle, preventing damage to walls and the door itself.

Is this product accessible for the elderly and handicapped?

Yes, it includes a "Delay Action" adjustment and is "Barrier Free" engineered to meet ADA regulations, providing reduced spring power for easier operation.

Can the closing speed be adjusted?

Yes, it features dual valves that allow you to independently regulate the closing speed (180° to 15°) and the latching speed (15° to 0°).
