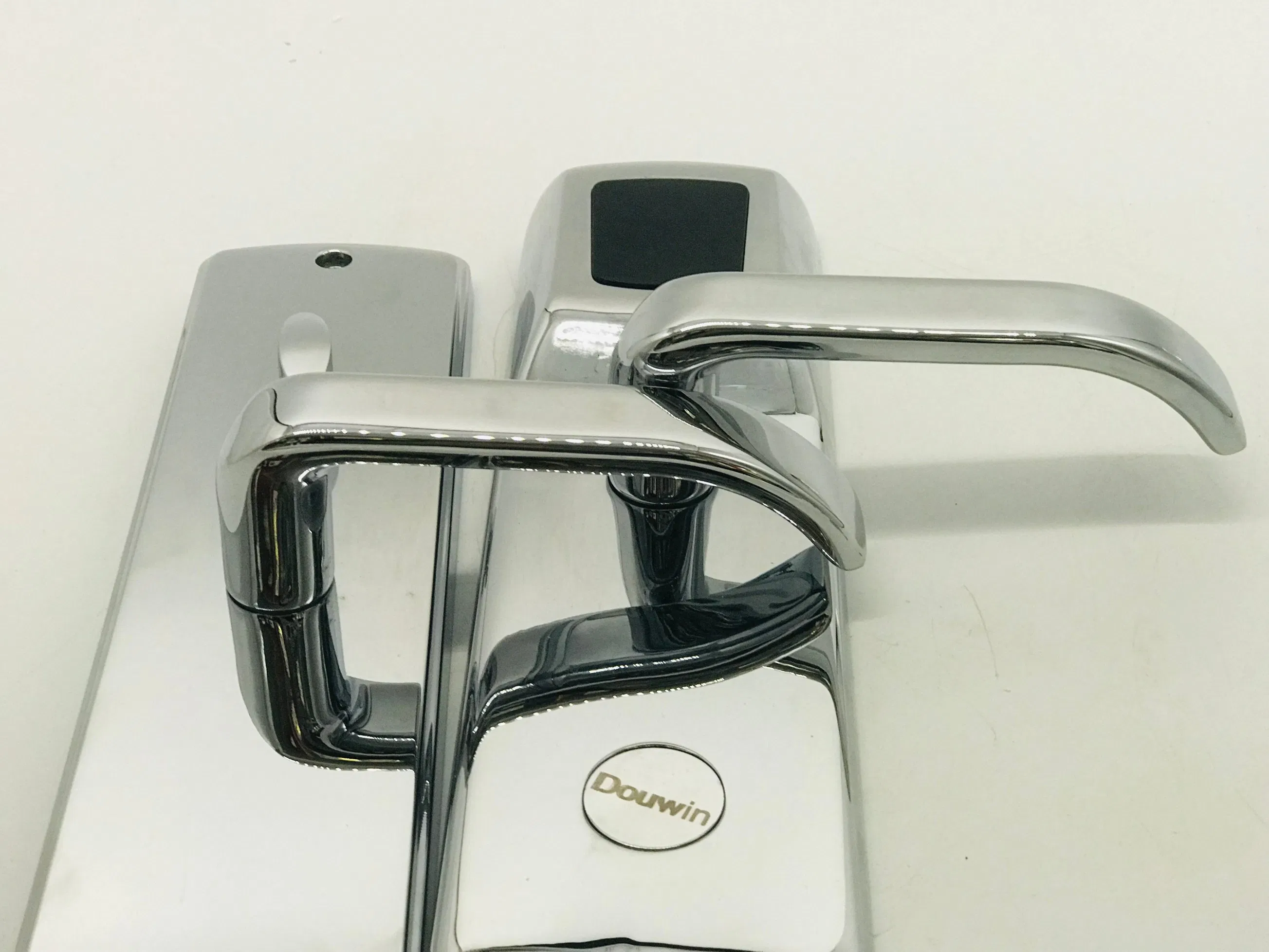

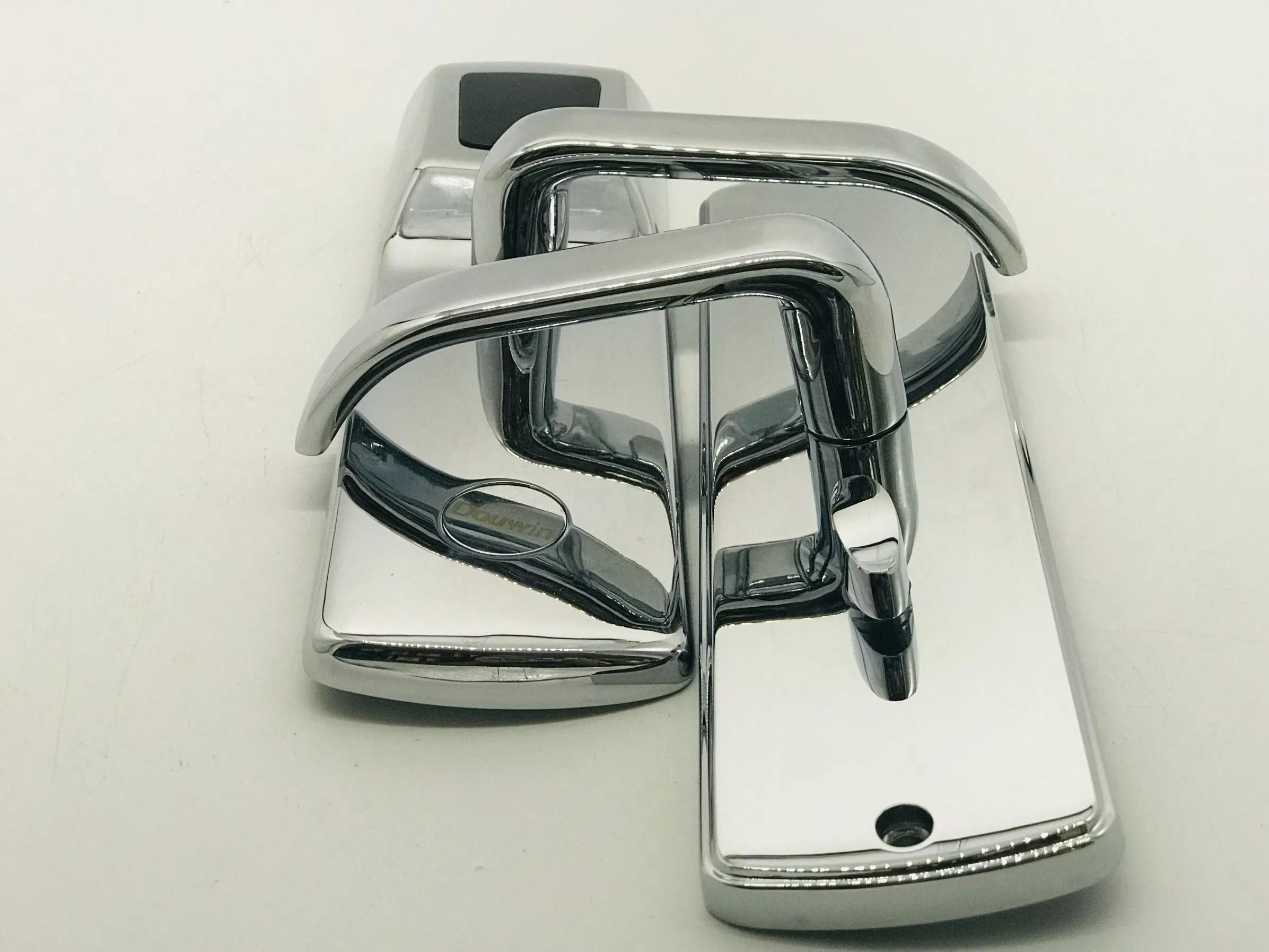

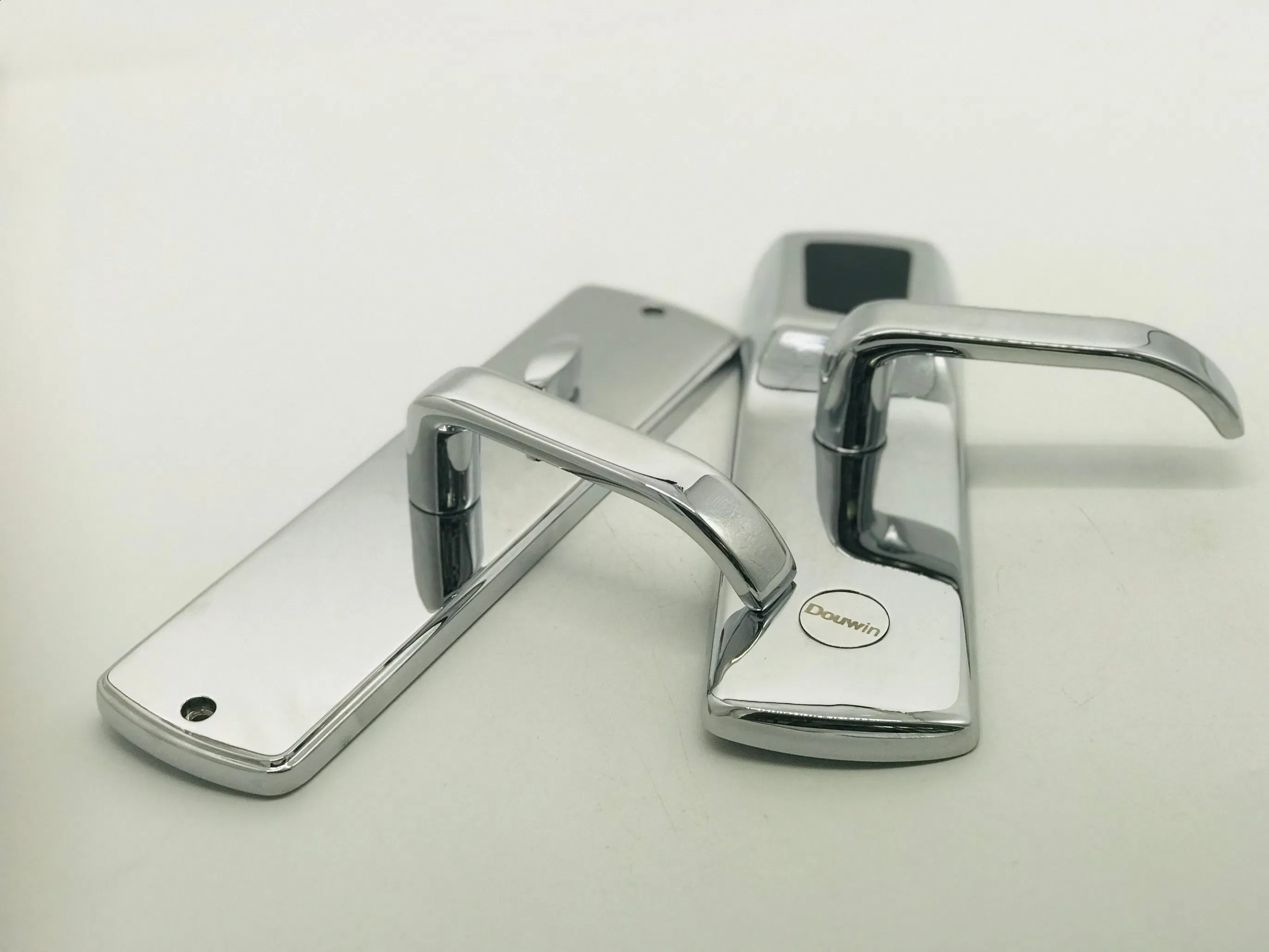

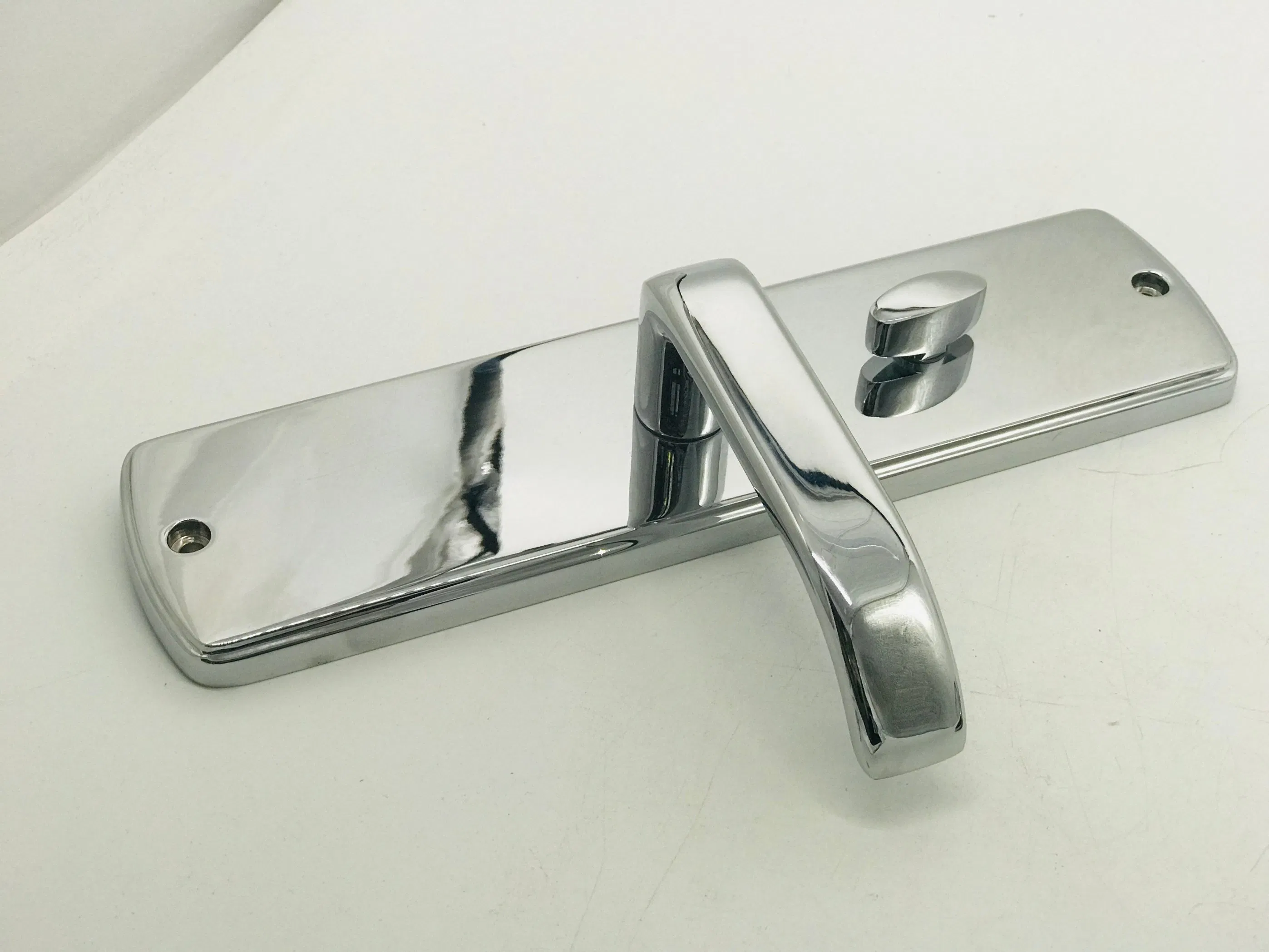

Lock RFID Hotel Door Lock 13.5kmz Card and Mechanical Key
Lock RFID Hotel Door Lock 13.5kmz Card and Mechanical Key
Lock RFID Hotel Door Lock 13.5kmz Card and Mechanical Key
Lock RFID Hotel Door Lock 13.5kmz Card and Mechanical Key
Lock RFID Hotel Door Lock 13.5kmz Card and Mechanical Key
1 / 5
Lock RFID Hotel Door Lock 13.5kmz Card and Mechanical Key
Lock RFID Hotel Door Lock 13.5kmz Card and Mechanical Key
Lock RFID Hotel Door Lock 13.5kmz Card and Mechanical Key
Lock RFID Hotel Door Lock 13.5kmz Card and Mechanical Key
Lock RFID Hotel Door Lock 13.5kmz Card and Mechanical Key

Lock RFID Hotel Door Lock 13.5kmz Card and Mechanical Key

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
M586MFSC
Style
American
Shape
Mortise Door Lock
Anti-theft Standard
B
Part
Key
Backset
60mm
Door Thickness
35-50mm
Usage
Hotel, Apartment, School, Office
Certificate
Ce, FCC, RoHS
MOQ
1PCS
Power Supply
DC6V
Payment
T/T, Western Union, Paypal
Unlock Way
Card and Key
HS Code
83014000
Product Features
Hotel Door Lock Model
Card Entry System

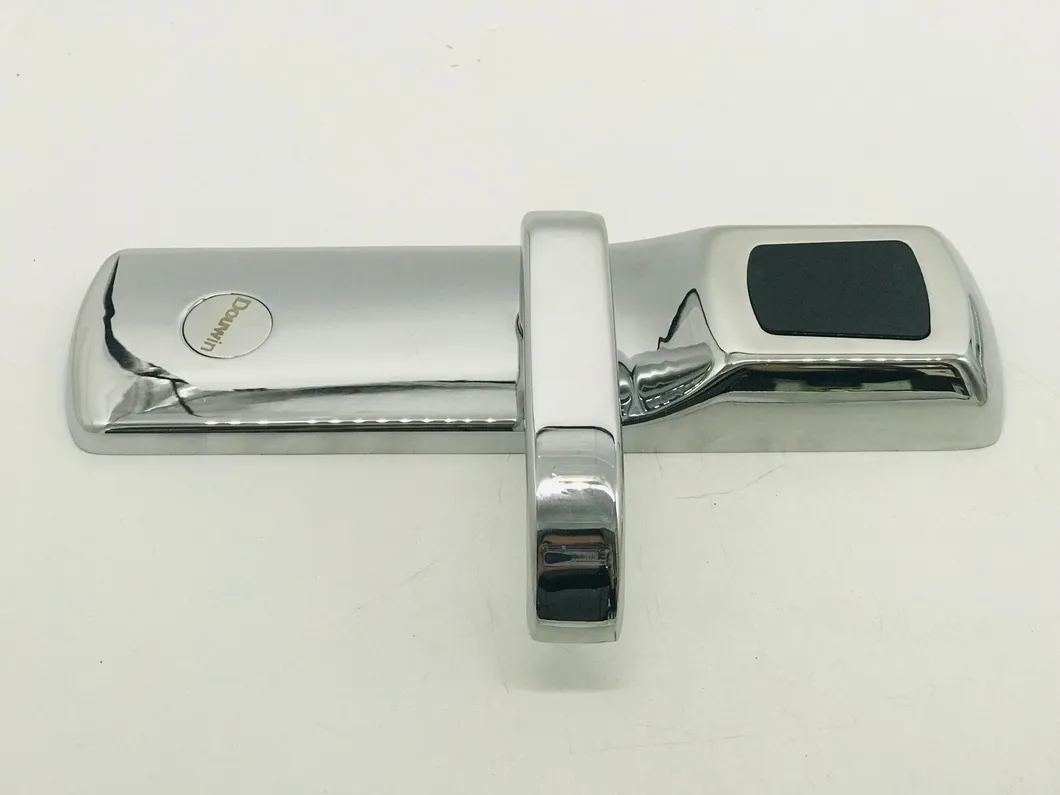

Lock Interior View
◈
Multiple Functions:

Five levels of control: General control, building control, floor control, area control and room control. Password control includes system and operating passwords to ensure maximum security.

◈
Security & Coding:

Cipher coding to key card: Each card has a different code that cannot be copied. If a card is missed, the open function can be canceled immediately through loss reporting.

◈
Timing & Records:

Working clock is set inside locks to control effective time limits. All issued cards have records including each opening, even mechanical key usage (512 lines for standard type).

Technical Specifications
Power SupplyDC6V (4x AA batteries) with low voltage indication
Static Power Supply<1uA
Dynamic Power SupplyAbout 200mA
Battery LifespanNormally exceeds 20,000 door openings
Working Temperature-25ºC ~ 65ºC
Inductive Distance3-10cm
Working Humidity98% maximum
Anti-static Electricity15,000V
Backset / Deadbolt56/70mm Backset, 20mm Deadbolt

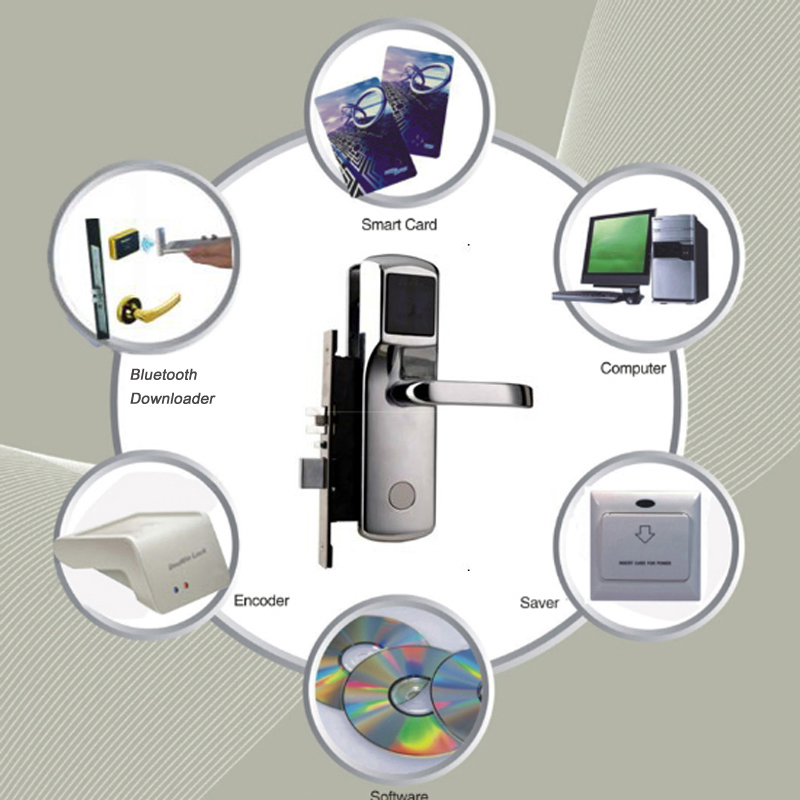

System Integration

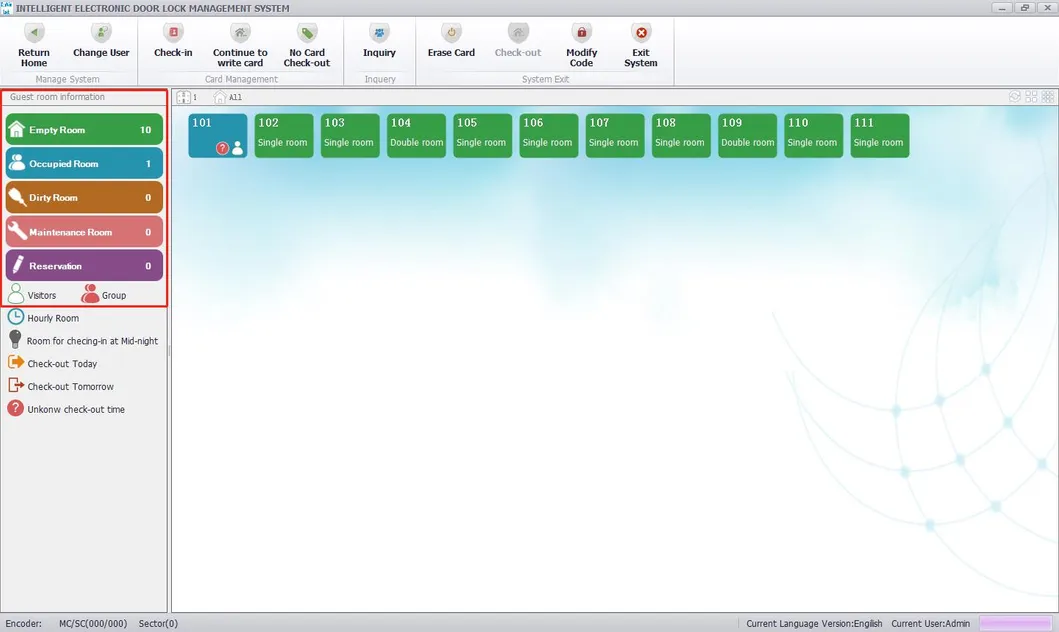

System Software Interface

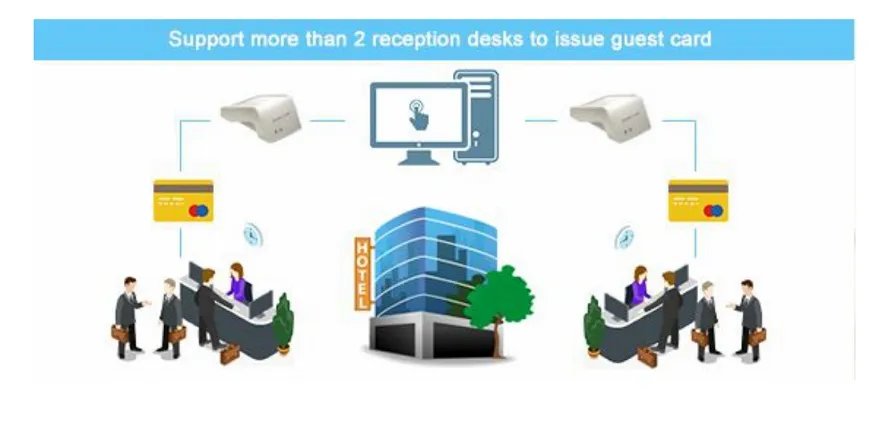

Card Encoder
Handheld Programmer

Our intelligent system is widely used in guesthouses, hotels, apartments, and office estates. The product line includes 13.56Mhz Mifare locks, RF locks, and energy-saving switches, all designed for seamless management and high security.

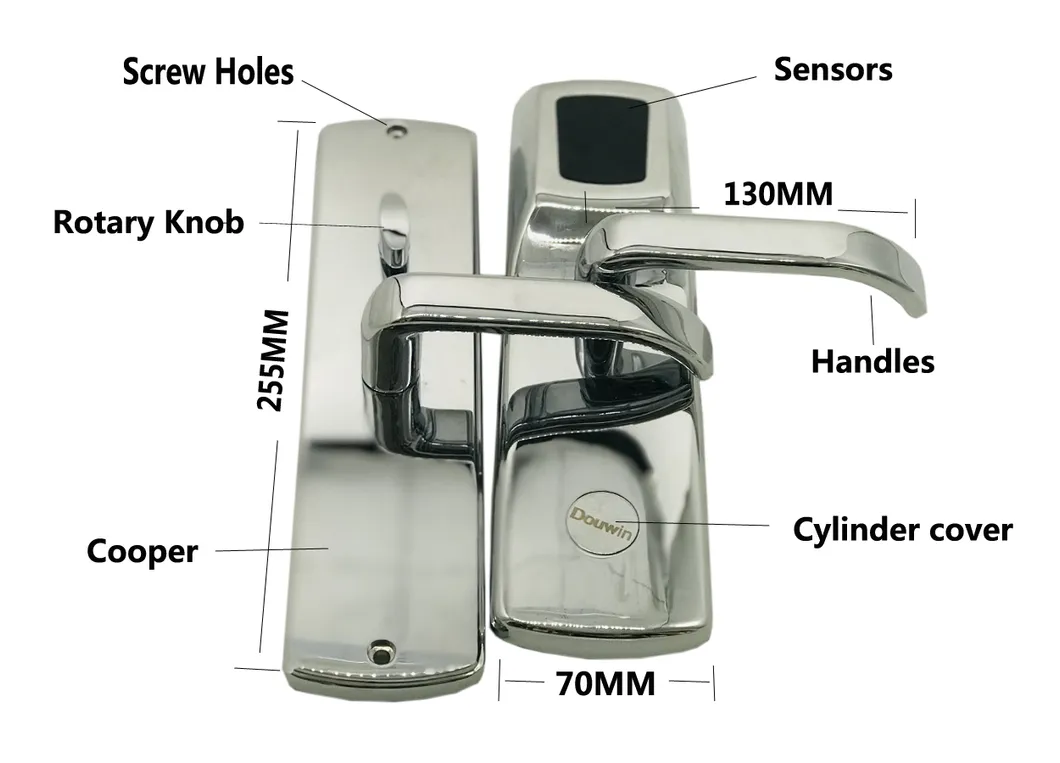

Lock Dimensions
Product List
Frequently Asked Questions
What door thickness is suitable for this lock?
This lock is designed to fit door thicknesses between 35mm and 50mm, making it ideal for standard hotel and office doors.
How is the lock powered and what is the battery life?
It is powered by 4 pieces of AA batteries (DC6V). The battery life is highly efficient and typically allows for over 20,000 openings before replacement is needed.
What happens if a guest loses their room card?
The system features a loss reporting function. Once a card is reported missing, its access permissions can be canceled within the system to ensure security.
Does the lock keep a record of who entered the room?
Yes, the lock stores an internal audit trail of up to 512 lines, which includes RFID card entries and mechanical key openings.
Can the lock handle extreme environmental conditions?
Yes, it is built to operate in temperatures ranging from -20°C to 70°C and can withstand humidity levels up to 98%.
What unlock methods are available for emergencies?
In addition to the RFID card, each lock is equipped with a mechanical key for emergency manual override.
