Customization: Available
After-sales Service: Technical Support & Customization Service
Warranty: 1
Send Inquiry

Product Description

Basic Specifications

Model NO.
CM3
Material
Aluminum Alloy
Type
Combination Lock
Style
European
Shape
Mortise Door Lock
Backset
70mm
Communication
WiFi, BLE 5.3, USB
Power
3V, 4 * Battery

Product Overview

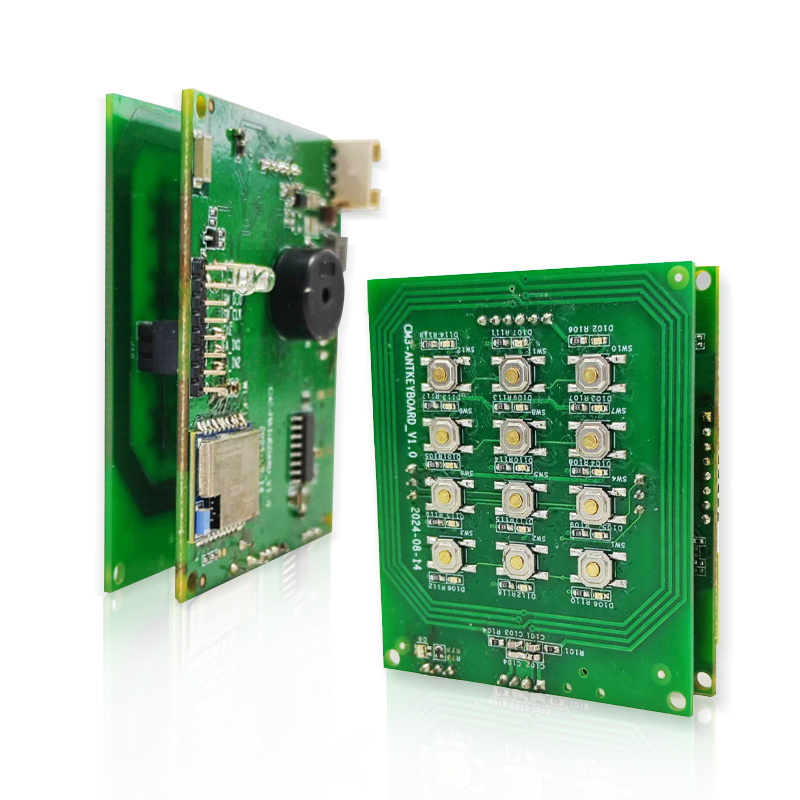

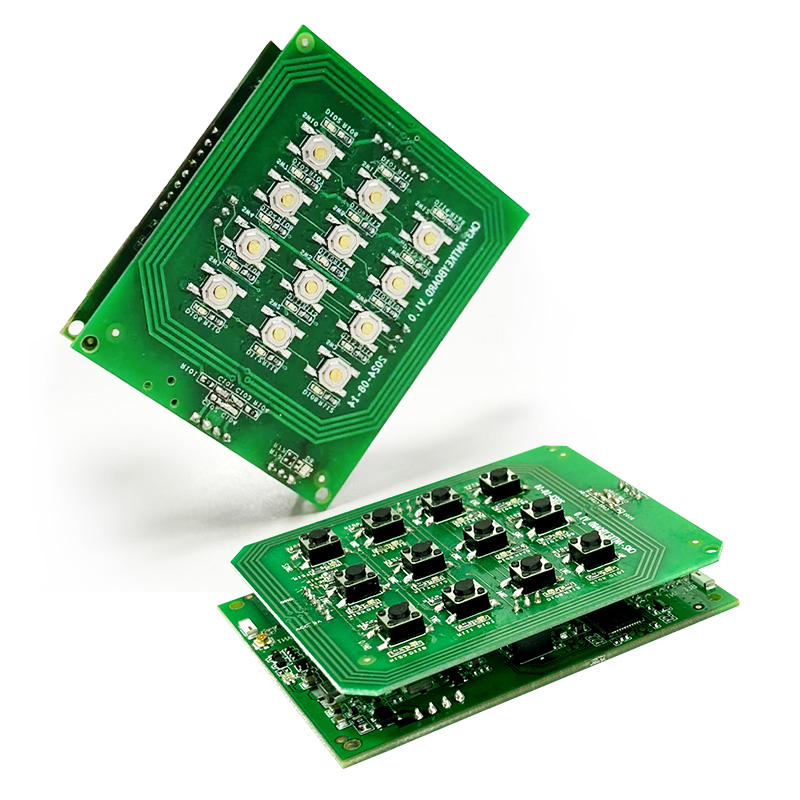

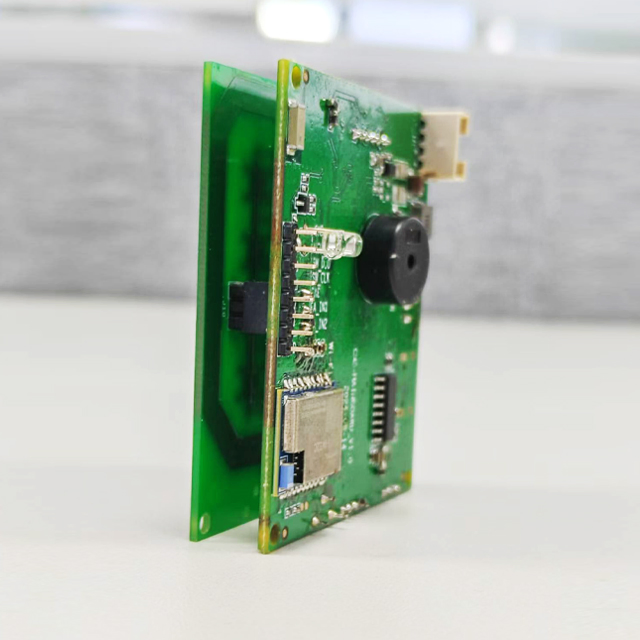

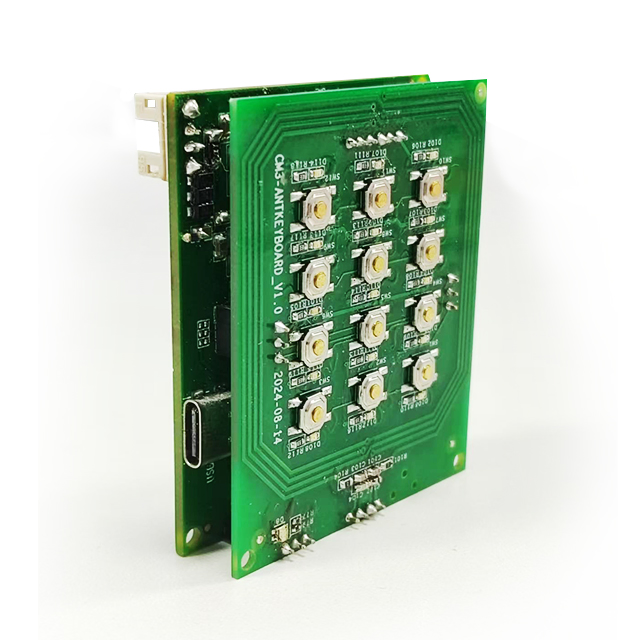

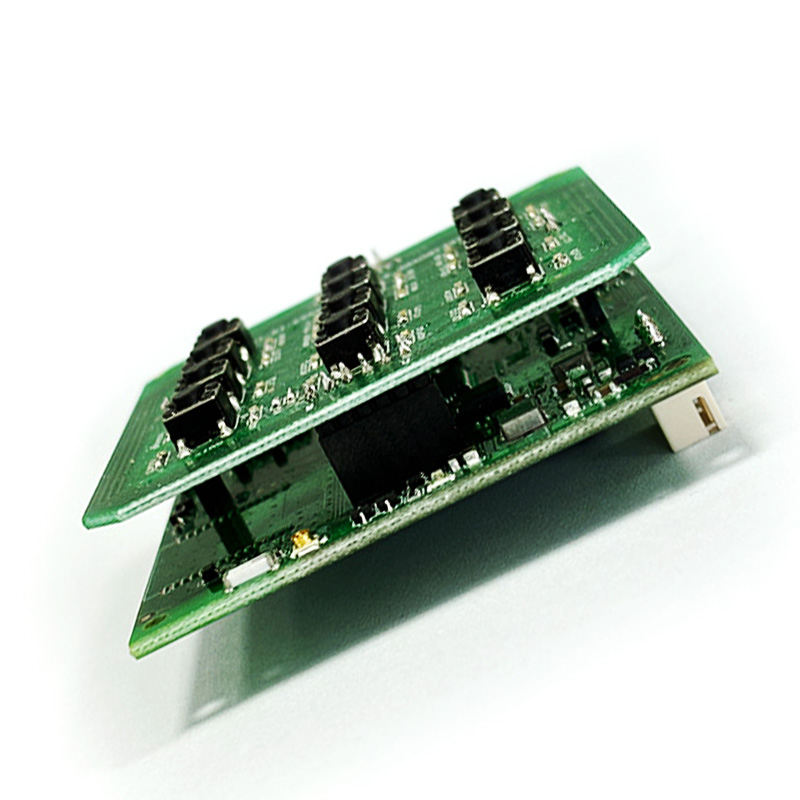

Smart CM3 is the new generation of BLE 5.4 wireless high-performance multi technology platform. It provides an ultra-low battery-operated power consumption design, which contain the latest wireless interfacing and multiple identification technologies for customized design of access control, wireless electric lock, canteen management, asset tracking and different handheld applications.

Smart CM3 supports almost all RFID 13.56MHz contactless technologies, including desfire EV1/EV2/EV3. It also supports NFC and BLE Mobile credentials for mobile application. Together with supporting Arm® TrustZone® and securable I/Os features, it meet the high security application.

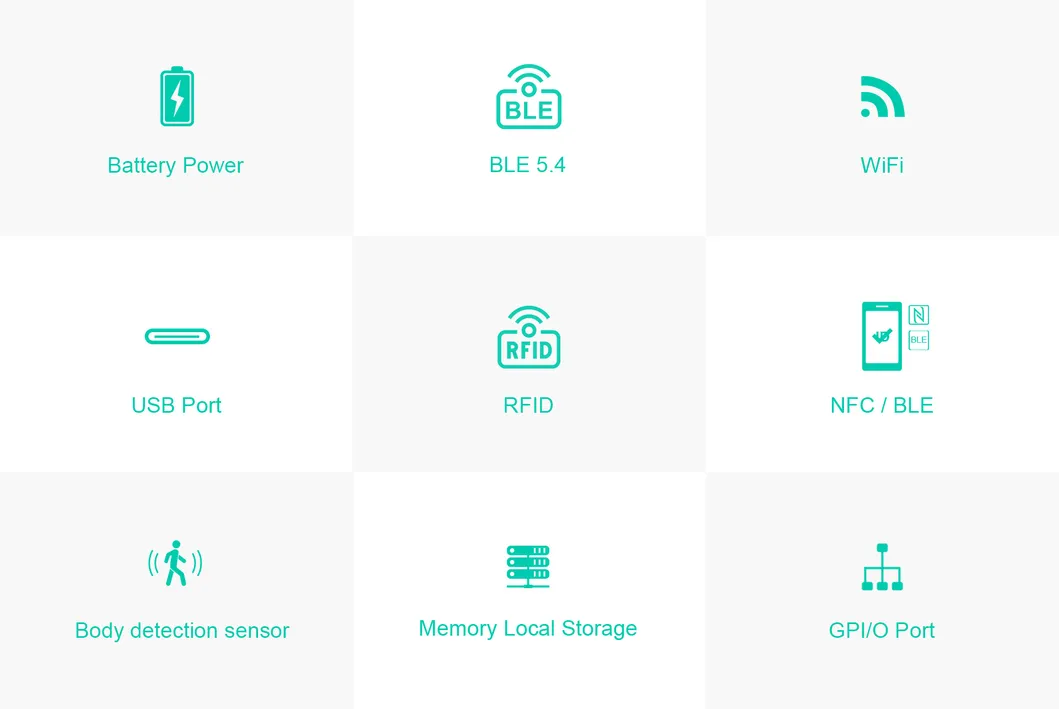

Smart CM3 Overview

Product Features

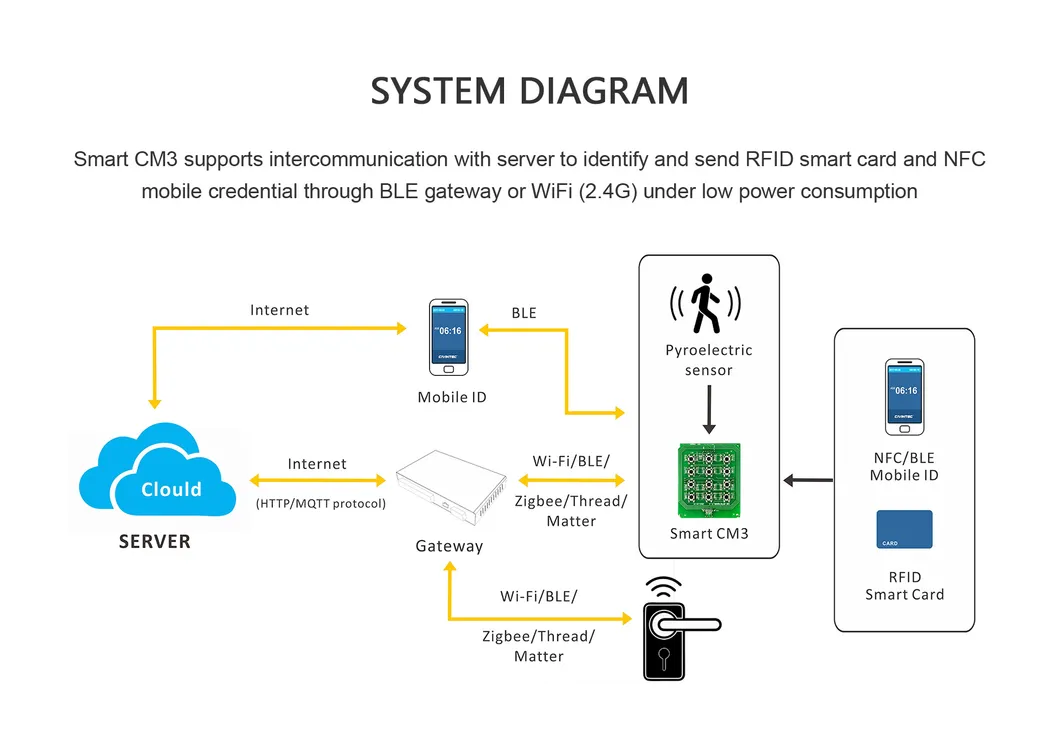

Feature 1 Feature 2 Feature 3

Key Advantages

  • Support 13.56MHz Desfire EV1/EV2/EV3 and NFC
  • Support Arm® TrustZone® for high security
  • Rich I/O port for electric lock control
  • With memory for local data storage
  • Economic solution for battery powered ultra-low power consumption
  • Supports BLE 5.4 Zigbee, Thread/Matter/MQTT protocol
  • Embedded software development with Body detection function
Smart CM3 Advantages

Technical Specifications

Memory4M BYTE
Power SupplyUSB or 3V / 4 * battery
RFID Standards13.56MHz ISO14443A, ISO15693, ISO18092; Mifare Classic, DESfire EV1/EV2/EV3, NFC tag, HID iCLASS CSN
Secure InterfaceOptional SAM slot ISO7816; Support SAM AV2; Secure IC for MCU protection (EAL5+ Level)
Mobile Comm.NFC mobile phone, BLE 5.3
Keypad12 digit mechanical keypad
InterfacesWiFi, BLE 5.3 (Master/Slave, Beacon, Thread, Zigbee, Mesh), USB
Operating Temp.-20ºC ~ 60ºC
ConfigurationConfiguration card, reader tool software or factory configured

Frequently Asked Questions

What is the primary benefit of the Smart CM3 platform?
It is a high-performance wireless platform featuring ultra-low power consumption, making it ideal for battery-operated access control and handheld applications.
Which RFID technologies are supported?
It supports 13.56MHz technologies including Mifare Classic, DESfire EV1/EV2/EV3, Ultralight, NFC tags, and HID iCLASS CSN.
Does the device support mobile phone access?
Yes, it supports both NFC mobile phone communication and BLE 5.3 for mobile credentials.
What are the power supply options for this lock?
The device can be powered via a USB connection or by using four 3V batteries.
How secure is the communication and data storage?
It features Arm® TrustZone® support, optional SAM slots with EAL5+ encryption, and secure IC for MCU protection.
What wireless protocols are compatible with the BLE module?
It supports BLE 5.3/5.4, Zigbee, Thread, Matter, and MQTT protocols for versatile connectivity.
