| Model NO. | CM3 |
| Material | Aluminum Alloy |
| Type | Combination Lock |
| Style | European |
| Shape | Mortise Door Lock |
| Anti-theft Standard | A |
| Part | Lock |
| Backset | 70mm |
| Usage | Household Door Locks, Bedroom, Channel Lock |
| RFID | MIFARE Plus, MIFARE, DESFire EV1/EV2, ISO14443b |
| Secure Interface | Sam Slot & Secure IC Eal5+ Level |
| BLE Wireless | BLE 5.3 Master & Slave Mode, Beacon, Thread, Zigbee |
| Communication | WiFi, BLE 5.3, USB |
| Mechanical Keypad | 12 Digit Keypad |
| Memory | 4M |
| Power | 3V, 4 * Battery |
| Production Capacity | 1000 Piece/Pieces Per Month |

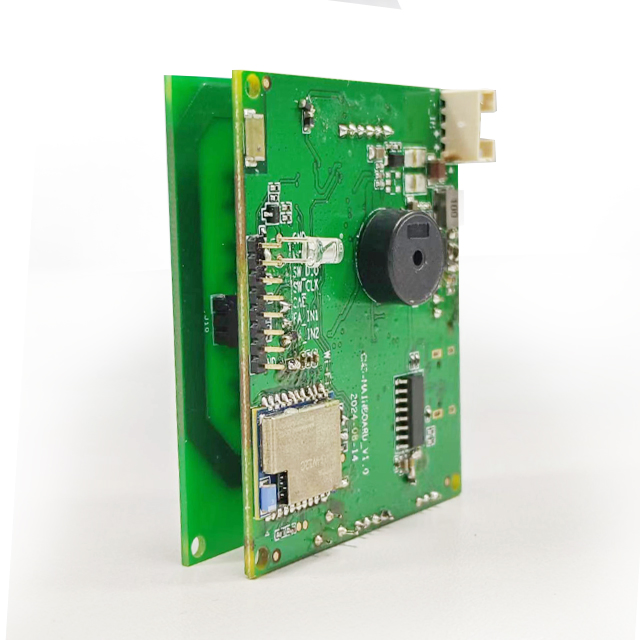

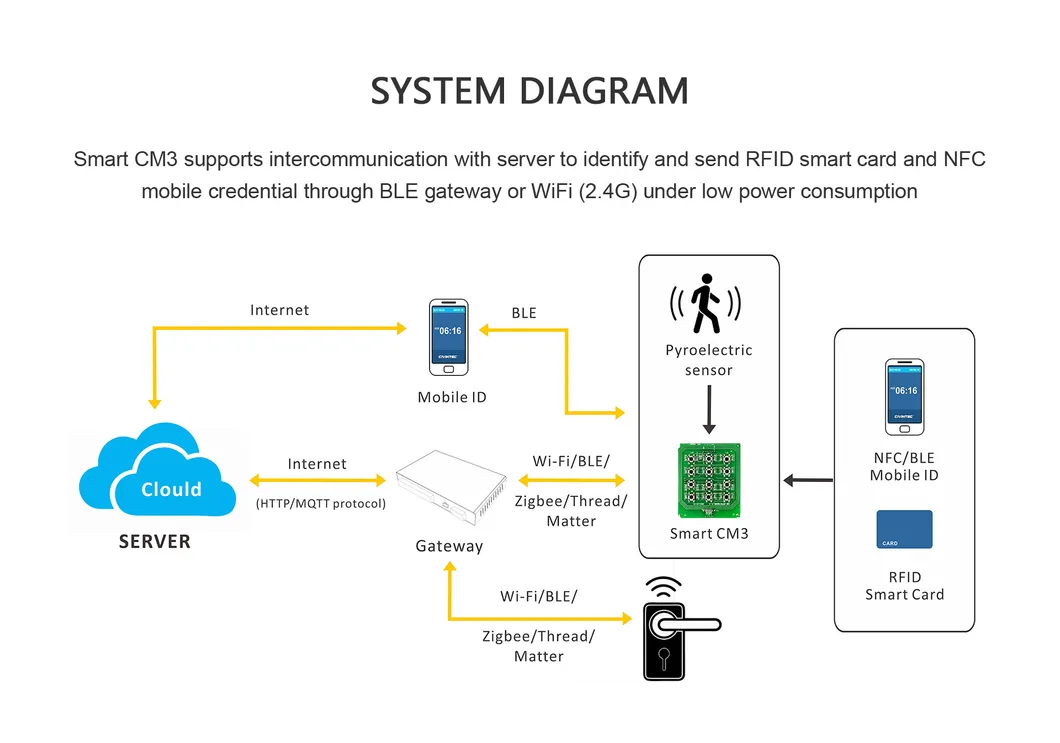

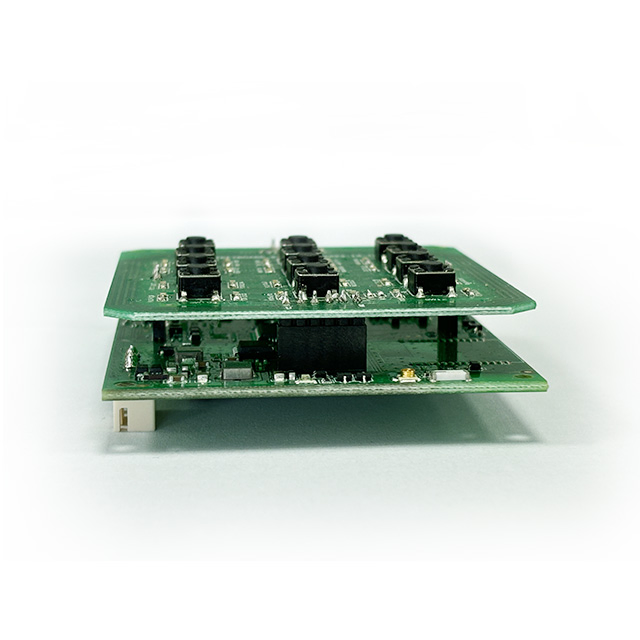

Smart CM3 is the new generation of BLE 5.4 wireless high-performance multi-technology platform. It provides an ultra-low battery-operated power consumption design, which contains the latest wireless interfacing and multiple identification technologies for customized design of access control, wireless electric lock, canteen management, asset tracking and different handheld applications.

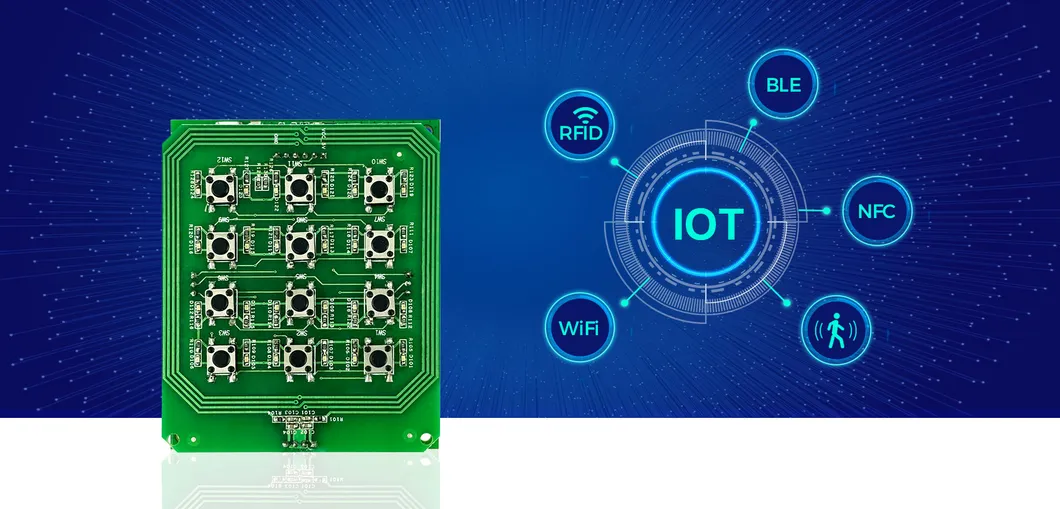

Smart CM3 supports almost all RFID 13.56MHz contactless technologies, including desfire EV1/EV2/EV3. It also supports NFC and BLE Mobile credentials for mobile application. Together with supporting ArmĀ® TrustZoneĀ® and securable I/Os features, it meets high security application requirements.
Thanks to the latest technologies, it meets the Ultra-low power consumption requirement. Smart CM3 powerful platform is highly recommended for both hardware and software customization.
| Memory | 4M BYTE |
| Power Supply | USB or 3V / 4 * battery |
| RFID Standards | 13.56MHz ISO14443A, ISO15693, ISO18092; Mifare Classic, DESfire EV1/EV2/EV3, Ultralight C, Plus S/X, NFC tag, HID iCLASS CSN |
| Secure Interface | Optional SAM slot ISO7816; Support SAM AV2; Secure IC for MCU protection EAL5+ Level |
| Mobile Comm. | NFC mobile phone & BLE 5.3 |

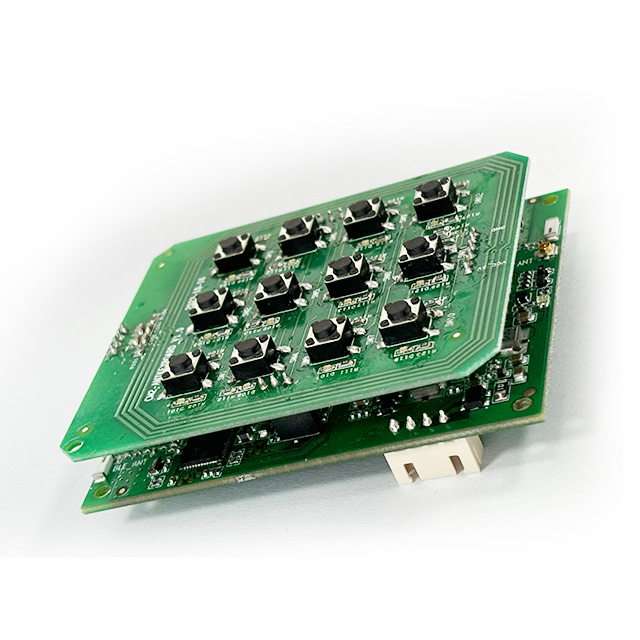

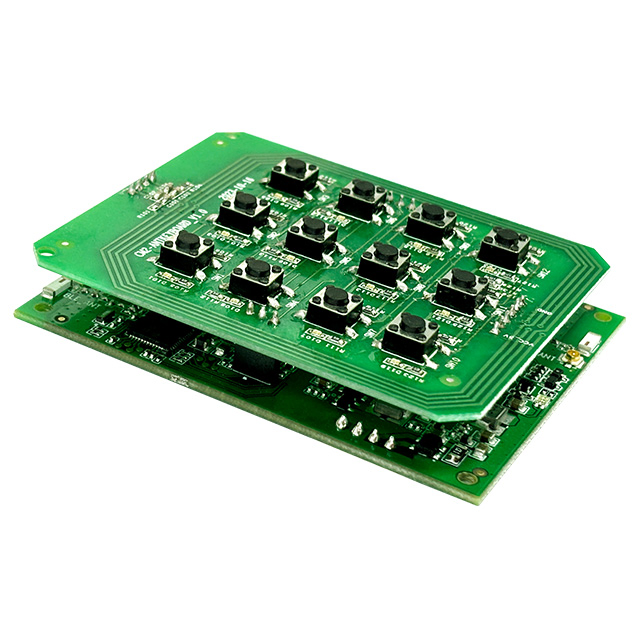

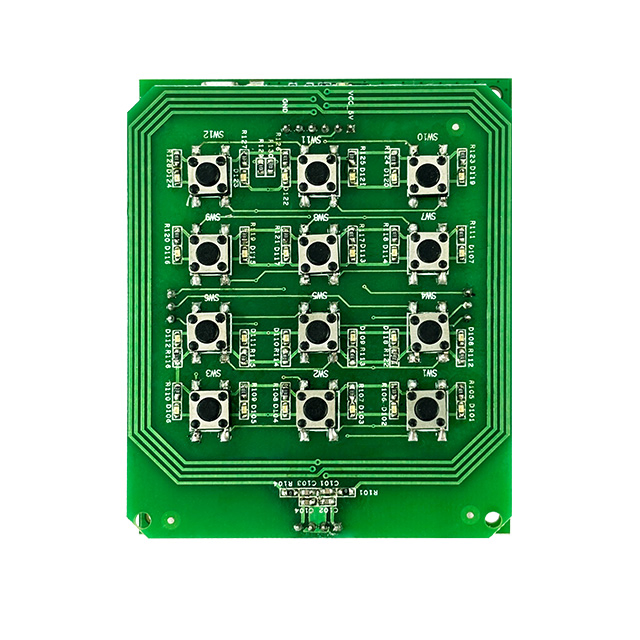

| Keypad | 12 digit mechanical keypad |
| Comm. Interfaces | WiFi, BLE 5.3 (Master/Slave, Beacon, Thread, Zigbee, Mesh), USB |
| Indicators | Buzzer and Bio-color LED |
| Input/Output | GPI/O * 8 |
| Operating Temp | -20ĀŗC ~ 60ĀŗC |
| Configuration | Configuration card, reader tool software or factory configured |
