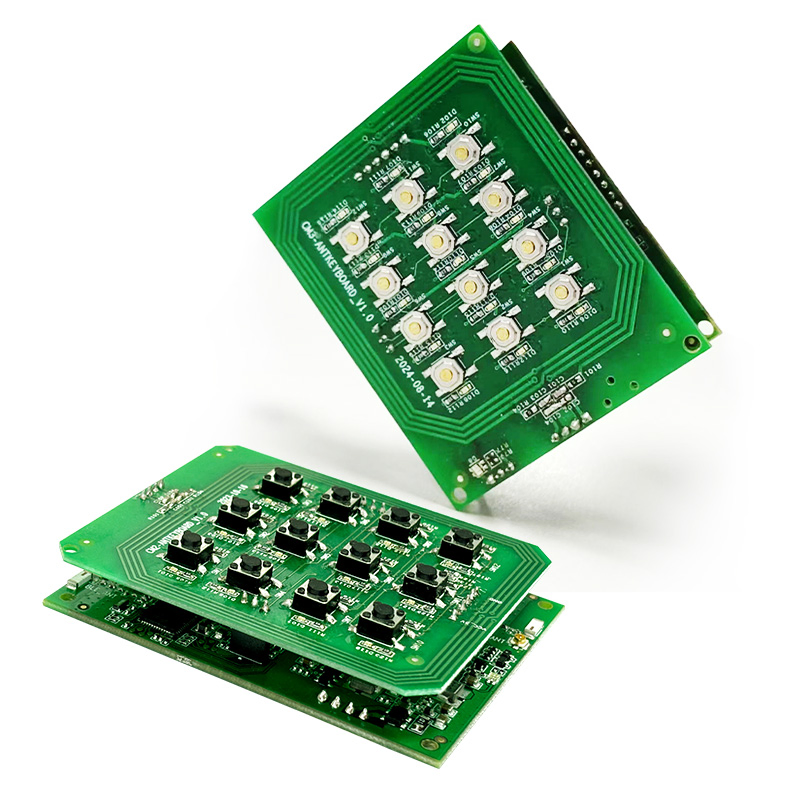

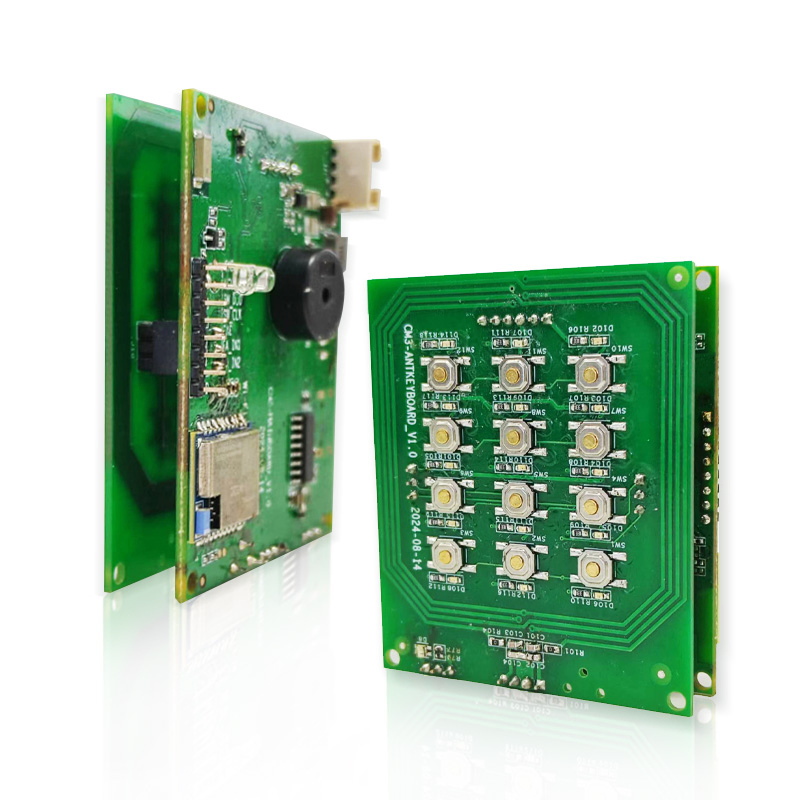

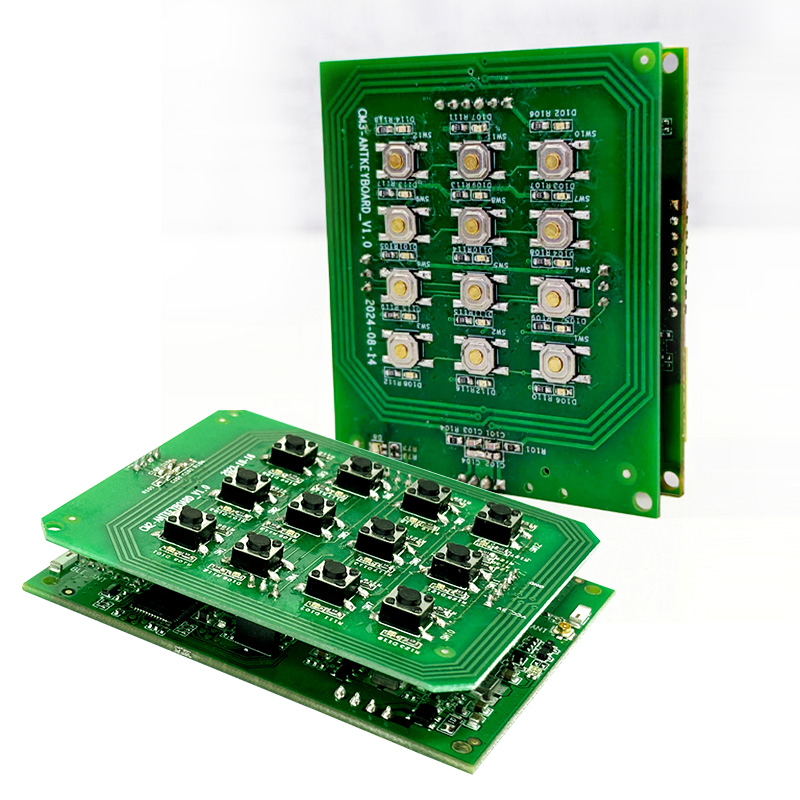

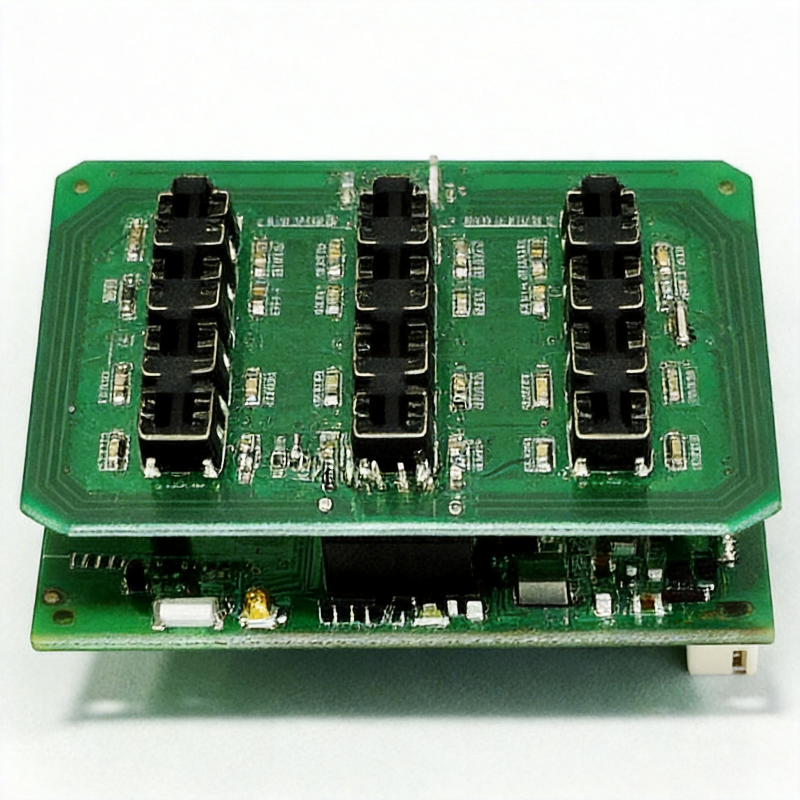

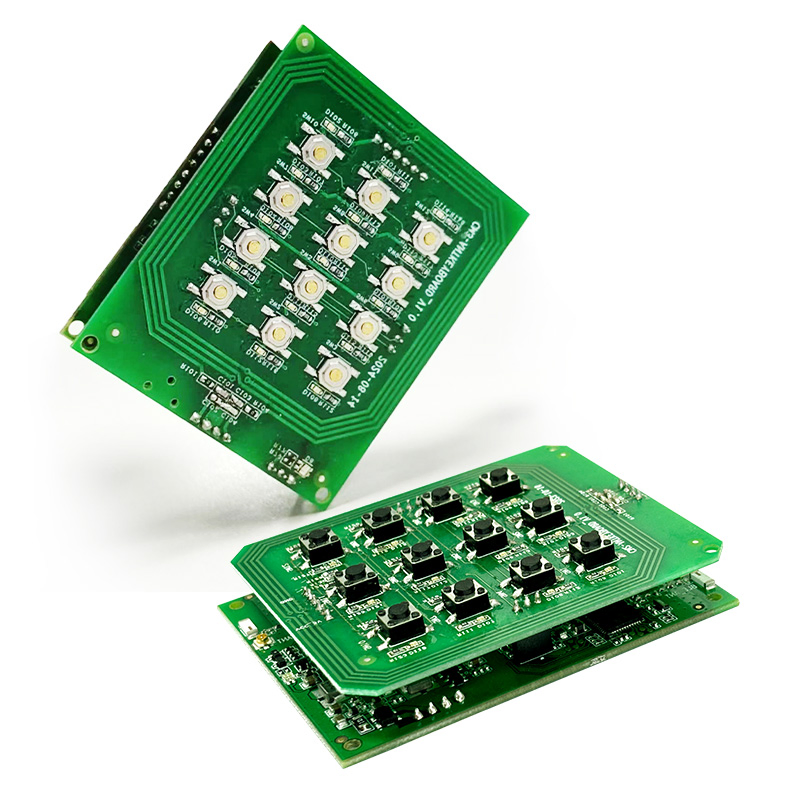

Cm3 Remote Control Access Control System with Visitor Management Lock Credential Machine
Cm3 Remote Control Access Control System with Visitor Management Lock Credential Machine
Cm3 Remote Control Access Control System with Visitor Management Lock Credential Machine
Cm3 Remote Control Access Control System with Visitor Management Lock Credential Machine
Cm3 Remote Control Access Control System with Visitor Management Lock Credential Machine
1 / 5
Cm3 Remote Control Access Control System with Visitor Management Lock Credential Machine
Cm3 Remote Control Access Control System with Visitor Management Lock Credential Machine
Cm3 Remote Control Access Control System with Visitor Management Lock Credential Machine
Cm3 Remote Control Access Control System with Visitor Management Lock Credential Machine
Cm3 Remote Control Access Control System with Visitor Management Lock Credential Machine

Cm3 Remote Control Access Control System with Visitor Management Lock Credential Machine

Customization: Available
After-sales Service: Technical Support & Customization Service
Warranty: 1
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
CM3
Material
Aluminum Alloy
Type
Combination Lock
Style
European
Shape
Mortise Door Lock
Backset
70mm
RFID Support
MIFARE Plus, DESFire EV1/EV2, ISO14443b
Wireless
BLE 5.3, WiFi, Zigbee
Keypad
12 Digit Mechanical
Power
3V, 4 * Battery
1

Product Overview

The Smart CM3 represents the new generation of BLE 5.4 wireless high-performance multi-technology platforms. Designed with ultra-low battery power consumption in mind, it integrates the latest wireless interfacing and multiple identification technologies. It is ideal for customized access control, wireless electric locks, asset tracking, and various handheld applications.

Supporting almost all RFID 13.56MHz contactless technologies (including DESFire EV1/EV2/EV3) and NFC/BLE mobile credentials, the CM3 meets the highest security standards with features like Arm® TrustZone® and securable I/Os.

Smart CM3 Product Overview
2

Key Features

Feature 1 Feature 2 Feature 3
3

Core Advantages

  • Supports 13.56MHz Desfire EV1/EV2/EV3 and NFC technologies.
  • Arm® TrustZone® integration for high-level security architecture.
  • Rich I/O ports designed specifically for electric lock control.
  • Integrated memory for reliable local data storage.
  • Economic ultra-low power consumption for extended battery life.
  • Multi-protocol support: BLE 5.4, Zigbee, Thread, Matter, and MQTT.
  • Embedded software development and body detection functionality.
CM3 Advantages
4

Technical Specifications

Memory4M BYTE
Power SupplyUSB or 3V (4 * Battery)
RFID Standards13.56MHz ISO14443A, ISO15693, ISO18092; Mifare Classic/DESfire EV1-3/Plus/NFC
Secure InterfaceOptional SAM slot (ISO7816); SAM AV2 support; Secure IC EAL5+ Level
Mobile CommsNFC & BLE 5.3
CommunicationWiFi, BLE 5.3 (Master/Slave, Beacon, Mesh, Zigbee), USB
Input/OutputGPI/O * 8
EnvironmentOperating Temp: -20ºC to 60ºC
5

Our Capabilities

Manufacturing and Quality Control
?

Frequently Asked Questions

Q1: What makes the CM3 platform "ultra-low power"? A: The CM3 utilizes the latest BLE 5.4 wireless technology and optimized circuitry designed specifically for battery-operated devices, maximizing operational lifespan.
Q2: Does the device support mobile phone access? A: Yes, it fully supports both NFC and BLE 5.3/5.4 mobile credentials for secure smartphone-based access control.
Q3: Which RFID technologies are compatible with this reader? A: It supports a wide range of 13.56MHz technologies, including Mifare Classic, DESFire EV1/EV2/EV3, Ultralight, and HID iCLASS CSN.
Q4: Can the CM3 be used for high-security applications? A: Absolutely. It integrates Arm® TrustZone®, optional SAM slots (EAL5+), and secure ICs for protected MCU communication.
Q5: What wireless protocols are supported for integration? A: It supports WiFi, BLE, Zigbee, Thread, Matter, and Mesh, offering versatile connectivity options for IoT environments.
Q6: Is it possible to customize the hardware or software? A: Yes, the CM3 platform is highly recommended for both hardware and software customization to meet specific project requirements.
