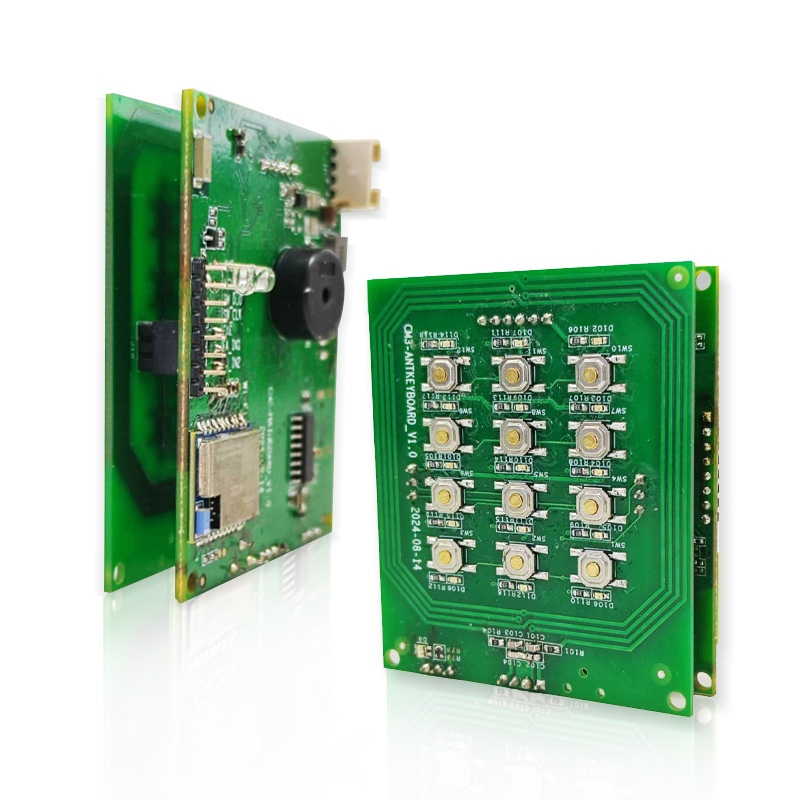

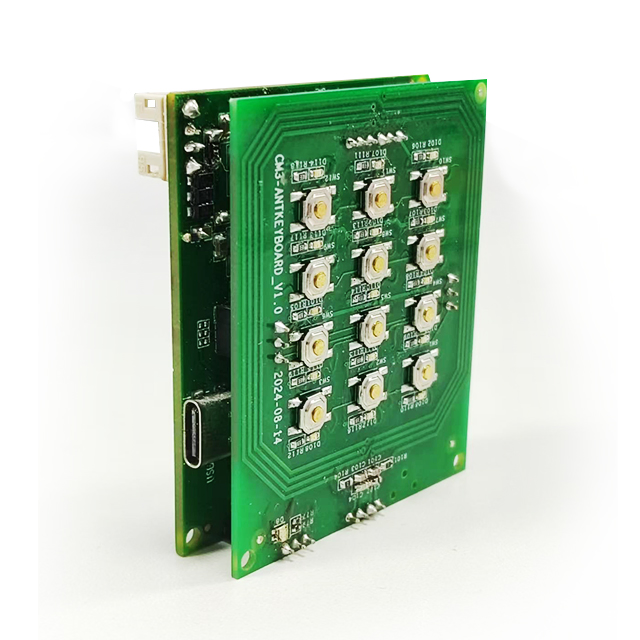

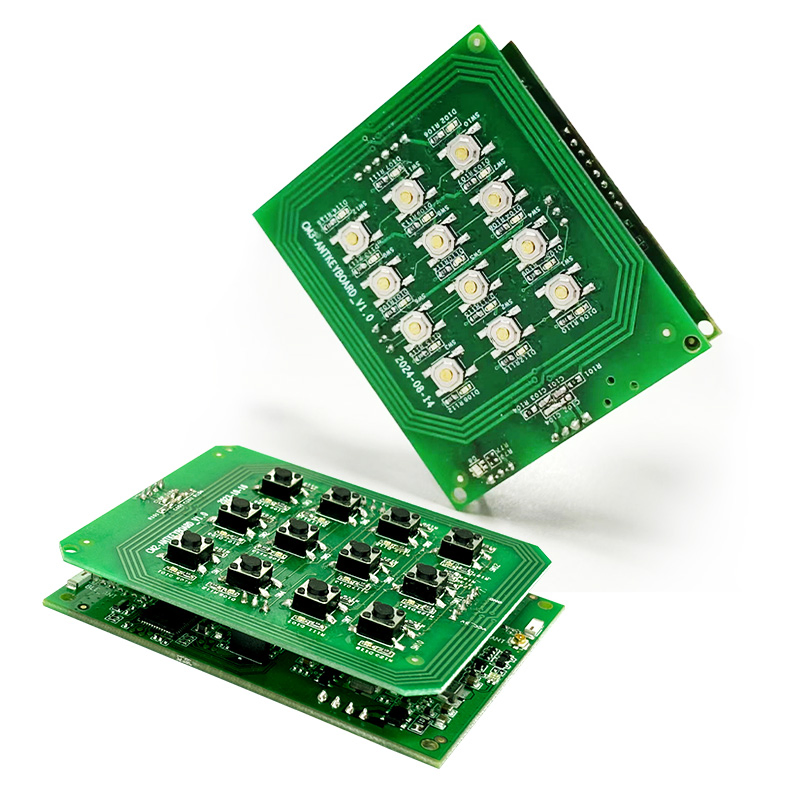

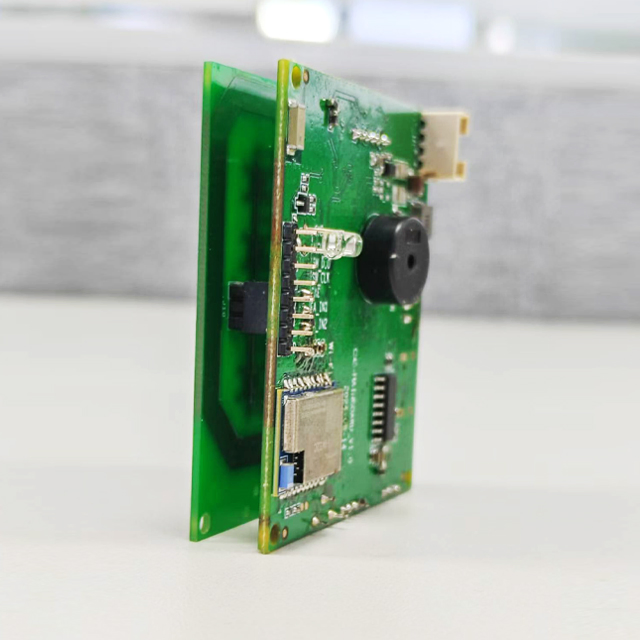

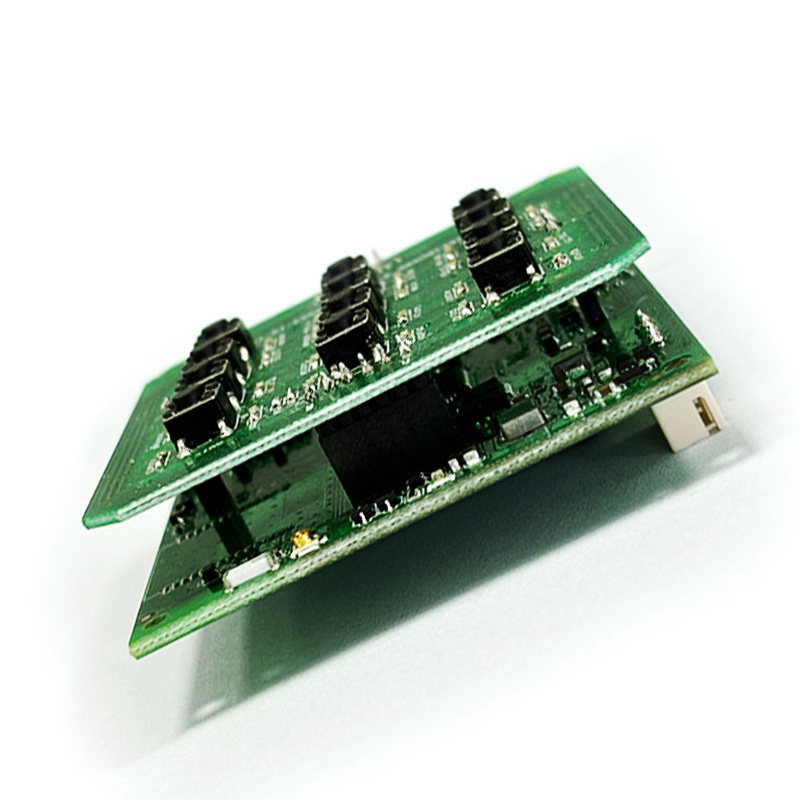

Smart CM3 is the new generation of BLE 5.4 wireless high-performance multi-technology platform. It provides an ultra-low battery-operated power consumption design, containing the latest wireless interfacing and multiple identification technologies for customized designs of access control, wireless electric locks, canteen management, and asset tracking.
Supporting almost all RFID 13.56MHz contactless technologies, including DESFire EV1/EV2/EV3, it also accommodates NFC and BLE Mobile credentials. With Arm® TrustZone® and securable I/Os, it meets the highest security requirements for hardware and software customization.
| Memory | 4M BYTE |
| Power Supply | USB or 3V (4 * Battery) |
| RFID Standards | 13.56MHz ISO14443A, ISO15693, ISO18092; Mifare Classic, DESFire EV1/EV2/EV3, NFC tags, HID iCLASS CSN |
| Secure Interface | Optional SAM slot ISO7816; SAM AV2 support; Secure IC MCU protection EAL5+ Level |
| Mobile Comms | NFC, BLE 5.3 |
| Keypad | 12 Digit Mechanical Keypad |
| Interfaces | WiFi, BLE 5.3 (Master/Slave, Beacon, Thread, Zigbee, Mesh), USB |
| Indicators | Buzzer and Bio-color LED |
| Operating Temp | -20ºC ~ 60ºC |
| Configuration | Config card, software tool, or factory configuration |
